TFB2002BM

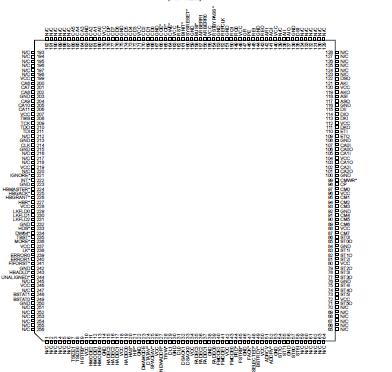

The TFB2002BM I/O controller (IOC) is a member of the Texas Instruments Futurebus+ chip set. This chip set provides a highly integrated approach to the Futurebus+ interface that reduces new-product design time, allows more functionality per circuit board, improves overall interface reliability, and reduces end-user down time through built-in test capabilities. The Futurebus+ chip set is capable of supporting 32- or 64-bit data widths in any combination on both the host interface and Futurebus+. The address width is programmable to be 32 bits or 36 bits (with either data width).

The TFB2002BM contains the control logic necessary to translate Futurebus+ transactions into host bus transactions and vice versa. It contains a high-speed Futurebus+ handshake controller, a synchronous host bus controller, and a reset type determination logic.

When controlled with a TFB2022AM Futurebus+ data-path unit (DPU), the TFB2002BM provides a complete 64-bit-wide interface to the Futurebus+. The TFB2002BM provides the necessary control logic for the data-path unit to provide a complete interface to the Futurebus+ for a Profile-B-compliant module. It can also be used on I/O or memory modules in a cache-coherent system.

The TFB2002BM is characterized over the full military temperature range of 55°C to 125°C.
