TF252

Features: • High gain : GV=1.0dB typ (VCC=2V, RL=2.2k, Cin=5pF, VIN=10mV, f=1kHz).• Ultrasmall package facilitates miniaturization in end products [1.0mm*0.6mm*0.27mm (max 0.3mm)].• Best suited for use in Electret Condenser Microphone for audio equipments and telephones.• E...

product image

TF252 Picture
See larger image
SeekIC No. : 004517896 Detail

TF252: Features: • High gain : GV=1.0dB typ (VCC=2V, RL=2.2k, Cin=5pF, VIN=10mV, f=1kHz).• Ultrasmall package facilitates miniaturization in end products [1.0mm*0.6mm*0.27mm (max 0.3mm)].•...

TF252 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TF252
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High gain : GV=1.0dB typ (VCC=2V, RL=2.2k, Cin=5pF, VIN=10mV, f=1kHz).

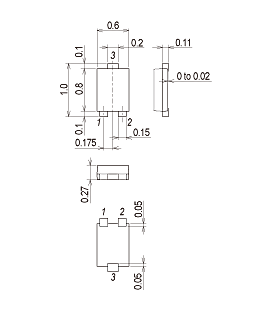

• Ultrasmall package facilitates miniaturization in end products [1.0mm*0.6mm*0.27mm (max 0.3mm)].
• Best suited for use in Electret Condenser Microphone for audio equipments and telephones.
• Excellent voltage characteristics.
• Excellent transient characteristics.
• Adoption of FBET process.
• Halogen free compliance.




Pinout






Specifications

Parameter Symbol Conditions Ratings Unit
Gate-to-Drain Voltage VGDO -20 V
Gate Current IG 10 mA
Drain Current ID 1 mA
Allowable Power Dissipation PD 30 mW
Junction Temperature Tj 150
Storage Temperature Tstg -55 to +150


Absolute maximum ratings
VDSX [V] -
VGDS VGDO [V] 20
ID [mA] 1
PD [mW] 30
Electrical characteristics
IDSS min [mA] 0.14
IDSS max [mA] 0.35
VDS [V] 2
|yfs| typ [mS] 1.4
VDS [V] 2
f [kHz] 1
Ciss typ [pF] 3.1
VDS [V] 2
f [MHz] 1
Crss typ [pF] 0.95
VDS [V] 2
f [MHz] 1
GV typ [dB] 1
f [kHz] 1
VIN [mV] 10
VNO [dB] -102
