Product Details

Description



Features:

• Especially suited for use in electret condenser microphone for audio equipments and telephones.
• Ultrasmall package permitting applied sets to be small and slim.
• Excellent voltage characteristics.
• Excellent transient characteristics.
• Adoption of FBET process.

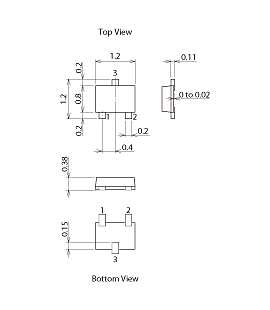

Pinout






Specifications

Parameter Symbol Conditions Ratings Unit
Gate-to-Drain Voltage VGDO -20 V
Gate Current IG 10 mA
Drain Current ID 1 mA
Allowable Power Dissipation PD 100 mW
Junction Temperature Tj 150
Storage Temperature Tstg --55 to +150


Absolute maximum ratings
VDSX [V] -
VGDS VGDO [V] 20
ID [mA] 1
PD [mW] 100
Electrical characteristics
IDSS min [mA] 0.14
IDSS max [mA] 0.35
VDS [V] 5
|yfs| typ [mS] 1.2
VDS [V] 5
f [kHz] 1
Ciss typ [pF] 3.5
VDS [V] 5
f [MHz] 1
Crss typ [pF] 0.65
VDS [V] 5
f [MHz] 1
GV typ [dB] 3
f [kHz] 1
VIN [mV] 10
VNO [dB] -110
