TEC1033

Features: `VERYLOW INPUT OFFSET VOLTAGE: 1mV max.`LOW DISTORTION RATIO`LOW NOISE`VERYLOW SUPPLY CURRENT`LOW INPUT OFFSET CURRENT`LARGECOMMON-MODE RANGE`HIGH OUTPUT CURRENT`GAIN-BANDWIDTH PRODUCT : 2MHz`TEMPERATURE DRIFT : 2mV/oC`LONGTERM STABILITY: 8mV/YEAR (for Tamb 50)PinoutSpecifications ...

product image

TEC1033 Picture
See larger image
SeekIC No. : 004517425 Detail

TEC1033: Features: `VERYLOW INPUT OFFSET VOLTAGE: 1mV max.`LOW DISTORTION RATIO`LOW NOISE`VERYLOW SUPPLY CURRENT`LOW INPUT OFFSET CURRENT`LARGECOMMON-MODE RANGE`HIGH OUTPUT CURRENT`GAIN-BANDWIDTH PRODUCT : 2...

TEC1033 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEC1033
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`VERYLOW INPUT OFFSET VOLTAGE: 1mV max.
`LOW DISTORTION RATIO
`LOW NOISE
`VERYLOW SUPPLY CURRENT
`LOW INPUT OFFSET CURRENT
`LARGECOMMON-MODE RANGE
`HIGH OUTPUT CURRENT
`GAIN-BANDWIDTH PRODUCT : 2MHz
`TEMPERATURE DRIFT : 2mV/oC
`LONGTERM STABILITY: 8mV/YEAR (for Tamb 50)

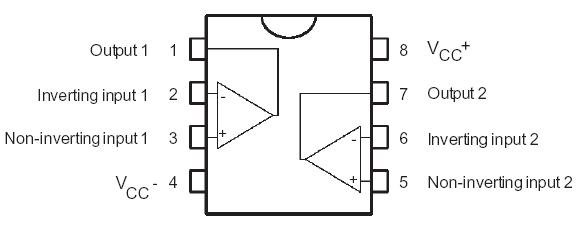

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage ± 18 V
Vi Input Voltage ± VCC V
Vid Differential Input Voltage ± (VCC 1) V
Ptot Power Dissipation D suffix
N suffix		 400
665		 mW
Toper Operating Free-air Temperature Range TEB1033
TEF1033
TEC1033		 0 to +70
40 to +105
55 to +125		 °C
Tstg Storage Temperature Range 65 to +150 °C



Description

The TEB1033, TEF1033 and TEC1033 are high performance dual-operational amplifiers intended for activefilter applications.The internalphase compensation allows stable operation as voltage follower in spite of their high gain-bandwidthproduct.

The circuits present very stable electrical characteristics over the entire supply voltage range.
