TEA5712T

Features: Wide supply voltage range: 1.8 or 2.1 to 12 V Low current consumption: 16 mA at AM, 17 mA at FM High selectivity with distributed IF gain LED driver for stereo indication High input sensitivity: 1.6 mV/m (AM), 2.0 V (FM) for 26 dB S/N Good strong signal behaviour: 10 V/m at AM,500 mV at...

product image

TEA5712T Picture
See larger image
SeekIC No. : 004517354 Detail

TEA5712T: Features: Wide supply voltage range: 1.8 or 2.1 to 12 V Low current consumption: 16 mA at AM, 17 mA at FM High selectivity with distributed IF gain LED driver for stereo indication High input sensi...

TEA5712T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA5712T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Wide supply voltage range: 1.8 or 2.1 to 12 V
Low current consumption: 16 mA at AM, 17 mA at FM
High selectivity with distributed IF gain
LED driver for stereo indication
High input sensitivity: 1.6 mV/m (AM), 2.0 V (FM) for 26 dB S/N
Good strong signal behaviour: 10 V/m at AM,500 mV at FM
Low output distortion: 0.8% at AM, 0.3% at FM
Signal level output
Soft mute
Signal dependent stereo
IF output signals available for IF counting
Designed for simple and reliable printed-circuit board layout
High impedance MOSFET input on AM.


Application

Portable AM/FM stereo radio
Mini/midi receiver sets
Digitally tuned personal headphone radio.


Pinout

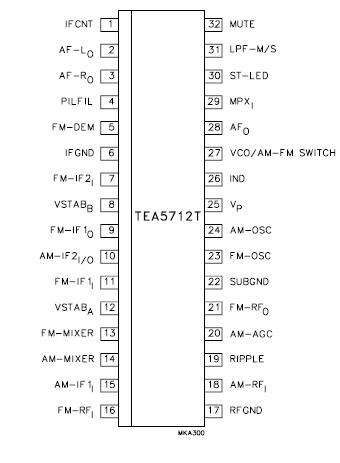

Connection Diagram




Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage 0 12 V
Tstg storage temperature -55 +150 °C
Tamb operating ambient temperature -15 +60 °C
Tj junction temperature -15 +150 °C



Description

The TEA5712 is a high performance Bimos IC for use in digitally tuned AM/FM stereo radios. All necessary functions are integrated: from AM and FM front-end to AM detector and FM stereo output stages.
