Features:

Wide supply voltage range: 1.8 or 2.1 to 12 V
Low current consumption: 15 mA at AM, 16 mA at FM
High selectivity with distributed IF gain
LED driver for stereo indication
High input sensitivity: 1.6 mV/m (AM), 2.0 V (FM) for 26 dB S/N
Good strong signal behaviour: 10 V/m at AM,500 mV at FM
Low output distortion: 0.8% at AM, 0.3% at FM
Signal level output
Soft mute
Signal dependent stereo
Designed for simple and reliable printed-circuit board layout
High impedance MOSFET input on AM.


Application

Portable AM/FM stereo radio
Mini/midi receiver sets
Personal headphone radio.


Pinout

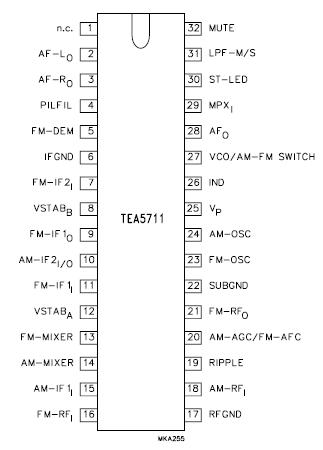

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage 0 12 V
Tstg storage temperature -55 +150 °C
Tamb operating ambient temperature -15 +60 °C
Tj junction temperature -15 +150 °C



Description

The TEA5711 is a high performance Bimos IC for use in AM/FM stereo radios. All necessary functions are integrated: from AM and FM front-end to AM detector and FM stereo output stages.
