Product Details

Description

Features:

Wide supply voltage range: 2.0 to 12 V
Low current consumption: 7.5 mA at AM, 9.0 mA at FM
High selectivity with distributed IF gain
LED driver for tuning indication
High input sensitivity: 1.6 mV/m (AM), 2.0 V (FM) for 26 dB S/N
Good strong signal behaviour: 10 V/m at AM, 500 mV at FM
Low output distortion: 0.8% at AM, 0.3% at FM
Designed for simple and reliable PC-board layout
High impedance MOSFET input on AM

Application

Portable AM/FM radio
Clock radio
Personal headphone radio

Pinout

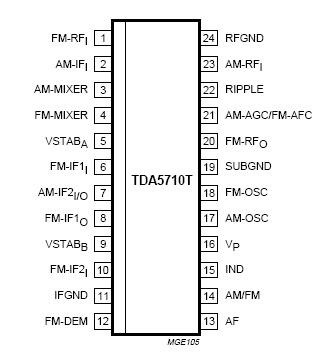

Connection Diagram

Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
V_P	supply voltage	0	12	V
T_stg	storage temperature	-55	+150	°C
T_amb	operating ambient temperature	-15	+60	°C
T_j	junction temperature	-15	+150	°C

Description

The TEA5710 is a high performance Bimos IC for use in AM/FM radios. All necessary functions are integrated:from AM and FM front-end to detector output stages.
