Product Details

Description



Features:

HALF-STEP AND FULL-STEP MODE
BIPOLAR DRIVE OF STEPPER MOTOR FOR MAXIMUM MOTOR PERFORMANCE
BUILT-IN PROTECTION DIODES
WIDE RANGE OF CURRENT CONTROL 5 TO 1000 mA
WIDE VOLTAGE RANGE 10 TO 45 V
DESIGNED FOR UNSTABILIZED MOTOR SUPPLY VOLTAGE
CURRENT LEVELS CAN BE SELECTED IN STEPSOR VARIEDCONTINUOUSLY

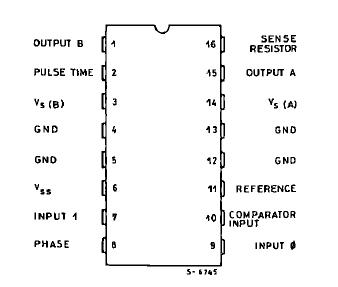

Pinout

Connection Diagram


Specifications

Symbol Parameters Value Unit
Vmm Power Supply Voltage (pins 14, 3) 45 V
VCC Logic Supply Voltage (pin 6) 7 V

Vin
Vin
VV		 Input Voltage:
Logic Inputs
Analog Inputs
Reference Input
0.5 to 6
VCC
15		 V



Iin
Iin		 Input Current
Logic Inputs
Analog Inputs
-10
-10

mA

IO Output Current ±1 A
TJ Junction Temperature +150 °C
Top Operating Ambient Temperature Range 0 to 70 °C
Tstg Storage Temperature Range -55 to +150 °C



Description

The TEA3717 is a bipolar monolithic integratedcircuit intended to control and drive the current in one winding of a bipolar stepper motor. The circuit consists of an LS-TTL compatible logic input, a current sensor,amonostableand an outputstagewith builtin protectiondiodes.Two TEA3717and a fewexternal components form a complete control and drive unit for LS-TTL or microprocessor-controlled stepper motor systems.
