TEA1096A

Features: Line Interface with: active set impedance (adjustable) voltage regulator with adjustable DC voltage low voltage circuit for parallel operation Interface to peripheral circuits with: supply VDD for microcontroller stabilized supply voltage (VBB) which is: available for peripheral ci...

product image

TEA1096A Picture
See larger image
SeekIC No. : 004517244 Detail

TEA1096A: Features: Line Interface with: active set impedance (adjustable) voltage regulator with adjustable DC voltage low voltage circuit for parallel operation Interface to peripheral circuits with: s...

TEA1096A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA1096A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Line Interface with:
   active set impedance (adjustable)
   voltage regulator with adjustable DC voltage
   low voltage circuit for parallel operation
Interface to peripheral circuits with:
   supply VDD for microcontroller
   stabilized supply voltage (VBB) which is:
        available for peripheral circuits
        adjustable (TEA1096 only)
   Dual-Tone MultiFrequency (DTMF) signal input
   power-down function for pulse dialling/flash
   mute function to disable speech during dialling
Microphone amplifier with:
   symmetrical high impedance inputs
   externally adjustable gain
   AGC; line-loss compensation
   dynamic limiter
   microphone mute function
Receiving amplifier with:
   externally adjustable gain
   confidence tone during dialling
   double anti-sidetone circuit for long and short lines
   AGC; line-loss compensation
   earpiece protection by soft clipping.
Listening-in circuit with:
   loudspeaker amplifier
   dynamic limiter to prevent distortion at any supply condition
   volume control via a potentiometer
   fixed gain of 35.5 dB
   disable function
   gain control input (TEA1096A only).


Application

Line-powered telephone sets with listening-in/line monitoring function.


Pinout

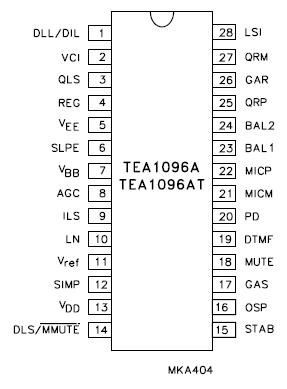

Connection Diagram




Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VLN voltage on pin LN   VEE - 0.4 12.0 V
VDD voltage on pin VDD   VEE - 0.4 12.0 V
VBB voltage on pin VBB   VEE - 0.4 12.0 V
Vn1 voltage on pins:
REG, SLPE, AGC and ILS		   VEE - 0.4 VLN + 0.4 V
Vn2 voltage on pins:
DLL, VBA or VCI, QLS, LSI		   VEE - 0.4 VBB + 0.4 V
Vn3 voltage on pins: Vref, SIMP, STAB, DLS, OSP, GAS, MUTE, DTMF, PD, MICM, MICP, BAL1, BAL2, QRP, QRM, GAR   VEE - 0.4 VDD + 0.4 V
Iline line current
see also Figs 20 and 21 - 140 mA
Ptot total power dissipation:
TEA1096/TEA1096A
TEA1096T/TEA1096AT		 Tamb = +75 °C;
see Figs 20 and 21
-
-
0.91
0.66
W
W
Tstg storage temperature   -40 +125 °C
Tamb operating ambient temperature   -25 +75 °C



Description

The TEA1096 and TEA1096A are bipolar ICs intended for use in line powered telephone sets. They offer a speech/transmission function, listening-in and line monitoring facilities of the received line signal via the loudspeaker.
The devices incorporate a line interface block, a microphone and DTMF amplifier, a receiving amplifier, a supply function, a loudspeaker amplifier, and a dynamic limiter in the transmission channel and the listening-in channel.
