TEA1094A

Features: ` Low power consumption` Power-down function (TEA1094A only)` Microphone channel with: externally adjustable gain microphone mute function.` Loudspeaker channel with: externally adjustable gain dynamic limiter to prevent distortion rail-to-rail output stage for single-ended load drive lo...

product image

TEA1094A Picture
See larger image
SeekIC No. : 004517241 Detail

TEA1094A: Features: ` Low power consumption` Power-down function (TEA1094A only)` Microphone channel with: externally adjustable gain microphone mute function.` Loudspeaker channel with: externally adjustable...

TEA1094A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA1094A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low power consumption
` Power-down function (TEA1094A only)
` Microphone channel with:
externally adjustable gain
microphone mute function.
` Loudspeaker channel with:
externally adjustable gain
dynamic limiter to prevent distortion
rail-to-rail output stage for single-ended load drive
logarithmic volume control via linear potentiometer
loudspeaker mute function.
` Duplex controller consisting of:
signal envelope and noise envelope monitors for both
channels with:
externally adjustable sensitivity
externally adjustable signal envelope time constant
externally adjustable noise envelope time constant
decision logic with:
externally adjustable switch-over timing
externally adjustable idle mode timing
externally adjustable dial tone detector in
receive channel
voice switch control with:
adjustable switching range
constant sum of gain during switching
constant sum of gain at different volume settings.


Application

· Mains, battery or line-powered telephone sets with hands-free/listening-in functions
· Cordless telephones
· Answering machines
· Fax machines.


Pinout

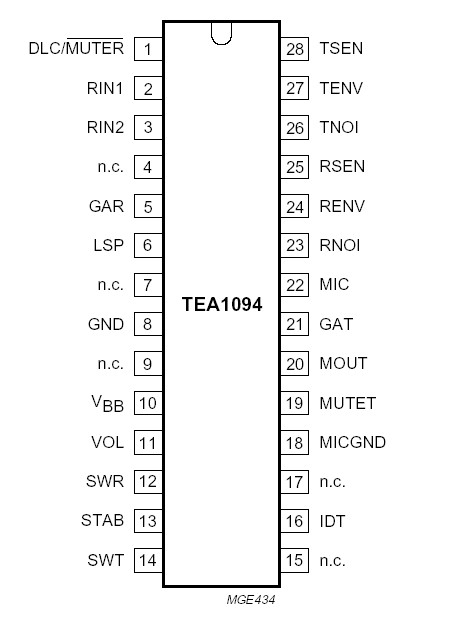

Connection Diagram


Specifications

SYMBOL
PARAMETER
TEST CONDITIONS
MIN.
MAX.
UNIT
Vn(max)
VRIN(max)
VBB(max)		 maximum voltage on all pins; except pins
VBB, RIN1 and RIN2
maximum voltage on pins RIN1 and RIN2
maximum voltage on pin VBB		   VGND - 0.4

VGND - 1.2
VGND - 0.4		 VBB + 0.4

VBB + 0.4
12.0		 V

V
V
Ptot total power dissipation
TEA1094
TEA1094A
TEA1094T
TEA1094AT
TEA1094AM		 Tamb = 75 °C
-
-
-
-
-
1000
910
625
590
438
mW
mW
mW
mW
mW
Tstg
Tamb		 IC storage temperature
operating ambient temperature


-40
-25
+125
+75
°C
°C



Description

The TEA1094 and TEA1094A are bipolar circuits intended for use in mains, battery or line-powered telephone sets, cordless telephones, answering machines and Fax machines. In conjunction with a member of the TEA106X, TEA111X families of transmission circuits, the devices offer a hands-free function. They incorporate a microphone amplifier, a loudspeaker amplifier and a duplex controller with signal and noise monitors on both channels.
