TEA1083

Features: ` Internal supply Optimum current split-up Low constant current (adjustable) in transmission IC Nearly all line current available for monitoring Stabilized supply voltage` Loudspeaker amplifier with a fixed gain of 35 dB` Volume controlled by potentiometer` Power-down input (TEA1083A onl...

product image

TEA1083 Picture
See larger image
SeekIC No. : 004517235 Detail

TEA1083: Features: ` Internal supply Optimum current split-up Low constant current (adjustable) in transmission IC Nearly all line current available for monitoring Stabilized supply voltage` Loudspeaker ampl...

TEA1083 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA1083
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Internal supply
Optimum current split-up
Low constant current (adjustable) in transmission IC
Nearly all line current available for monitoring
Stabilized supply voltage
` Loudspeaker amplifier with a fixed gain of 35 dB
` Volume controlled by potentiometer
` Power-down input (TEA1083A only)
` Loudspeaker enable input.


Pinout

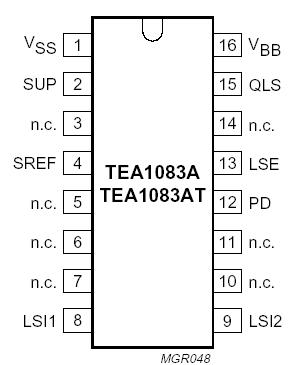

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VSUP



VSUP



VSREF

V

ISUP

Ptot



Tstg

Tamb

Tj
 Supply voltage
continuous
during switch-on or line interruption

Repetitive supply voltage from 1 ms to
5 s with 12 W current limiting resistor
in series with supply

Supply reference voltage

Voltage on all other pins

Supply current

Total power dissipation
TEA1083
TEA1083A
TEA1083AT

Storage temperature range

Operating ambient temperature range

Junction temperature

see Fig.6

Tamb = 75 °C; Tj = 125 °C		 -



-


-

VSS- 0.5

VSS - 0.5

-

-
-
-
-40

-25

-		 12


13.2


28

VSUP + 0.5

VBB + 0.5

120

500
769
555

+125

+75

+125		 V


V


V

V

V

mA

mW
mW
mW

°C

°C

°C




Description

The TEA1083/83A is a bipolar IC which has been designed for use in line powered telephone sets. It is intended to offer a monitoring facility of the line signal via a loudspeaker during on-hook dialling. The TEA1083/83A is intended for use in conjunction with a transmission circuit of the TEA1060 family. The device uses a part of the available line current via the internal supply circuit.

The loudspeaker amplifier, which consists of a preamplifier and a power amplifier, amplifies the received line signals from the transmission circuit when enabled via the LSE input. The loudspeaker amplifier can also be used to amplify dialling tones from the dialler IC. The poweramplifier contains a push-pull output stage to drive the loudspeaker in a Single Ended Load (SEL) configuration.

The internal voltage stabilizer can be used to supply external devices. By activating the power-down (PD) input of the TEA1083A, the current consumption of the circuit will be reduced, this enables pulse dialling or flash (register recall).

An internal start circuit ensures normal start-up of the transmission IC.
