TEA1069

Features: Speech part` Voltage regulator with adjustable static resistance` Low DC line voltage; operates down to 1.6 V(excluding polarity guard)` Supply for dialler part and peripherals (not stabilized)` Symmetrical high-impedance inputs (64 kW) fordynamic, magnetic, or piezoelectric microphones`...

product image

TEA1069 Picture
See larger image
SeekIC No. : 004517232 Detail

TEA1069: Features: Speech part` Voltage regulator with adjustable static resistance` Low DC line voltage; operates down to 1.6 V(excluding polarity guard)` Supply for dialler part and peripherals (not stabil...

TEA1069 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA1069
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Speech part
` Voltage regulator with adjustable static resistance
` Low DC line voltage; operates down to 1.6 V
(excluding polarity guard)
` Supply for dialler part and peripherals (not stabilized)
` Symmetrical high-impedance inputs (64 kW) for
dynamic, magnetic, or piezoelectric microphones
` Asymmetrical high-impedance input (32 kW) for electret
microphones
` Asymmetrical earpiece output for dynamic, magnetic,
or piezoelectric earpieces
` Internal mute to disable speech during dialling
` Confidence tone during DTMF dialling
` Line-loss compensation (line-current dependent)
microphone and earpiece amplifiers
` Gain-control curve adaptable to the exchange supply.
Dialler part
` Pulse/DTMF and mixed mode dialling
` Last Number Redial (LNR), up to 32 digits
` 13 repertory numbers (3 direct and 10 indirect) or
10 repertory numbers (10 direct), up to 32 digits,
with a maximum of 224 digits in total
` Repertory and redial memory integrity check
(memory contents check)
` Notepad memory function
` Flash and earth register recall
` Dial mode output
` Access pause generation and termination
` Function keys for: store, memory recall, register recall,
LNR, pause, hold, mute, hook
pulse or DTMF mode selection
register recall (earth and flash times)
keyboard layout selection
selection for german requirements
hold/mute mode selection.
Ringer part
` Ringer input frequency discrimination
` Ringer melody generation (3-tone)
` Ringer melody selection/volume control via keyboard
` Diode option: ringer frequency selection.
` Keytone generation
` Hands-free control
` Volume control in hands-free mode (VOL+/VOL-
` Hold function
` Mute function
` Music-on-hold
` Diode options:
DTMF tone burst/pause time
make/break ratio
access pause time

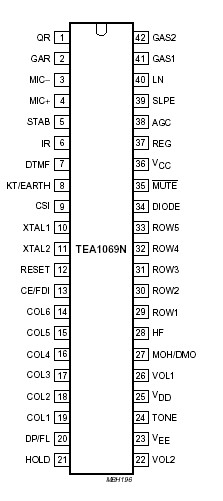

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Iline
IEE
Ptot

Tamb
Tstg		 line current
ground supply current through VEE
total power dissipation
TEA1069N
TEA1069H and TEA1069AH
operating ambient temperature
IC storage temperature		 R9 = 20 ; note 1

R9 = 20 ; note 2
-
-

-
-
-25
-40
140
50

770
300
+70
+125
mA
mA

mW
mW
°C
°C
Speech part
VLN
VLN(R)
VCC
Vi		 positive continuous line voltage
repetitive line voltage during switch-on or line
interruption
input voltage on pin VCC
input voltage on pins 1 to 7, 37, 38, 39, 41, 42
-
-

-
VEE - 0.7
12
13.2

12
VCC + 0.7
V
V

V
V
Dialler/ringer part
VDD
Vi
II
IO
Po		 supply voltage
input voltages on pins 8 to 22, 24, 26 to 35
DC input current on pins 8 to 22, 24, 26 to 35
DC output current on pins 8 to 22, 24, 26 to 35
power dissipation per output on pins 8 to 22, 24, 26 to 35
-0.7
VEE - 0.7
-10
-10
-
+7
VDD + 0.7
+10
+10
30
V
V
mA
mA
mW
Notes
1. Mostly dependent on the maximum required Tamb and on the voltage between LN and SLPE (see Fig.26 for TEA1069N or Fig.27 for TEA1069H and TEA1069AH).
2. Calculated for the maximum specified ambient temperature (Tamb = 70 °C, see also Fig.26 for TEA1069N or Fig.27 for TEA1069H and TEA1069AH).


Description

The TEA1069 and TEA1069A contain all the functions needed to build a highly featured, high-performance fully electronic telephone set.

The device incorporates a speech/transmission part, a dialler part and a ringer part. By offering a wide range of possible adaptations for each part, the TEA1069 and TEA1069A application can be easily adapted to meet different requirements.

The TEA1069A offers some different timings and diode options compared to the TEA1069. Where pin numbers are mentioned in this data sheet we refer to the TEA1069N, unless otherwise indicated.
