TEA1068

Features: · Voltage regulator with adjustable static resistance· Provides supply for external circuitry· Symmetrical high-impedance inputs (64 kW) for dynamic, magnetic or piezoelectric microphones· Asymmetrical high-impedance input (32 kW) for electret microphone· Dual-Tone Multi-Frequency (DTMF)...

product image

TEA1068 Picture
See larger image
SeekIC No. : 004517231 Detail

TEA1068: Features: · Voltage regulator with adjustable static resistance· Provides supply for external circuitry· Symmetrical high-impedance inputs (64 kW) for dynamic, magnetic or piezoelectric microphones·...

TEA1068 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA1068
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Voltage regulator with adjustable static resistance
· Provides supply for external circuitry
· Symmetrical high-impedance inputs (64 kW) for dynamic, magnetic or piezoelectric microphones
· Asymmetrical high-impedance input (32 kW) for electret microphone
· Dual-Tone Multi-Frequency (DTMF) signal input with confidence tone
· Mute input for pulse or DTMF dialling
· Power down input for pulse dial or register recall
· Receiving amplifier for magnetic, dynamic or piezoelectric earpieces
· Large gain setting range on microphone and earpiece amplifiers
· Line current-dependent line loss compensation facility for microphone and earpiece amplifiers
· Gain control adaptable to exchange supply
· DC line voltage adjustment facility.


Pinout

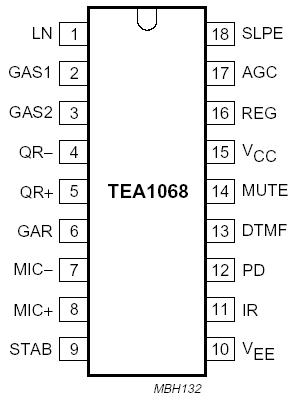

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VLN positive line voltage continuous   - 12 V
VLN(R) repetitive line voltage during
switch-on line interruption		   - 13.2 V
VLN(RM) repetitive peak line voltage one 1 ms
pulse per 5 s		 R9 = 20 W;
R10 = 13 W; (Fig.15)		 - 28 V
Iline line current R9 = 20 W; note 1 - 140
 mA
Vn voltage on any other pin   VEE1-0.7 VCC+0.7 V
Ptot total power dissipation
TEA1068
TEA1068T		 R9 = 20 W; note 2 -
-		 769
555		 mW
mW
Tstg IC storage temperature   -40 +125
Tamb operating ambient temperature   -25 +75 °C
Tj junction temperature   - +125 °C
Notes
1. Mostly dependent on the maximum required Tamb and on the voltage between LN and SLPE. See Figs 7 and 8 to determine the current as a function of the required voltage and the temperature.
2. Calculated for the maximum ambient temperature specified Tamb = 75 °C and a maximum junction temperature of 125 °C.


Description

The TEA1068 is a bipolar integrated circuit performing all speech and line interface functions required in fully electronic telephone sets. It performs electronic switching between dialling and speech.
