Features:

* Low d.c. line voltage; operates down to 1.6V
  (excluding polarity guard).
*Voltage regulator with adjustment static resistance.
*Provides supply with limited current for external
  circuitry.
*Symmetrical high-impedance inputs (64kΩ) for
  dynamic, magnetic or piezoelectric microphones.
*Asymmetrical high-impedance inputs (32kΩ) for
 electret microphones.
*DTMF signal input with confidence tone.
*Mute input for pulse or DTMF dialing.
*Receivering amplifier for several types of earphones.
*Large amplification setting range on microphone
  and earpiece amplifiers.
*Line  loss  compensation  facility ,  line  current
 depedant  (microphone and earpiece amplifiers).
*Gain control adaptable to exchange supply.
*Possibility to adjust the d.c. line voltage.


Pinout

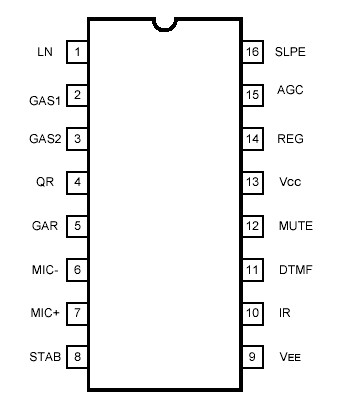

Connection Diagram


Specifications

SYMBOL
PARAMETER
TEST CONDITIONS
MIN.
MAX.
UNIT
VLN

VLN


VLN
Iline
Vi
-Vi
Ptot
Tstg
Tamb
Tj 		Positive Continuous Line Voltage
Repetitive Line Voltage During
Switch-On Or Line Interruption
Repetitive Peak Line Voltage for a 1 ms Pulse/5s


Line Current (1)
Voltage on All Other Pins

Total Power Dissipation (2)
Storage Temperature Range
Operating Ambient Temperature Range
Junction Temperature



R10=13Ω
R9=20Ω
(see Fig.15)
R9=20Ω


R9=20Ω










-40
-25
12

13.2


28
140
VCC+0.7
0.7
640
+125
+75
+125
V

V


V
mA
V
V
mW
°C
°C
°C
1. Mostly dependent on the maximum required Tamb and the voltage between LN and SLPE (see Figs 6 ).
2. Calculated for the maximum ambient temperature specified Tamb=75°C and a maximum junction temperature of       125°C.


Description

The UTC TEA1062N / TEA1062AN is a bipolar integrated circuit performing all speech and line interface function, required in the fully electronic telephone sets. It performs electronic switching between dialing speech. The circuit is able to operate down to D.C. line voltage of 1.6V (with reduced performance) to facilitate the use of more telephone sets in parallel.
