Features:

It has the following features:
· Suited for frequency and duty factor regulation.
· Suited for flyback converters and forward converters.
· Wide frequency range.
· Adjustable input sensitivity.
· Adjustable minimum frequency or maximum duty factor limit.
· Adjustable overcurrent protection limit.
· Supply voltage out-of-range protection.
· Slow-start facility.


Pinout

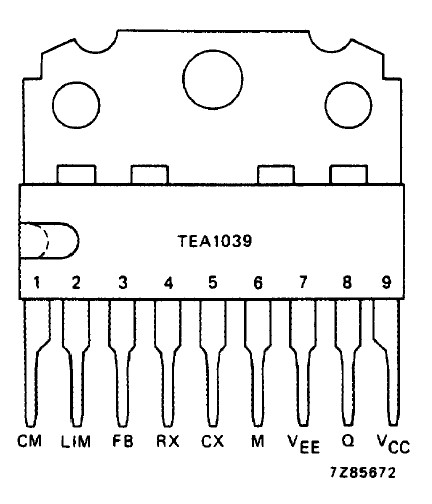

Connection Diagram


Specifications

Supply voltage range, voltage source
Supply current range, current source
Input voltage range, all inputs
Input current range, all inputs
Output voltage range
Output current range
output transistor ON
output transistor OFF
Storage temperature range
Operating ambient temperature range (see Fig.3)
Power dissipation (see Fig.3)
VCC
ICC
VI
II
V8-7

I8
I8
Tstg
Tamb
Ptot
-0,3 to
-30 to
-0,3 to
-5 to
-0,3 to
0 to
-100 to
-55 to
-25 to
+ 20
+ 30
+6
+5
+ 20
1
+ 50
+ 150
+ 125
V
mA
V
mA
V
A
mA
°C
°C
max. 2 W



Description

The TEA1039 is a bipolar integrated circuit intended for the control of a switched-mode power supply. Together with an external error amplifier and a voltage regulator (e.g. a regulator diode) it forms a complete control system. The circuit is capable of directly driving the SMPS power transistor in small SMPS systems.
