TEA0676T

Features: · Dual head pre-amplifiers· Reverse head switching· Equalization with electronically switched time constants· Output level like Dolby level of 387.5 mV = 0 dB· Improved EMC behaviour.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VCC supply voltage 0 14...

product image

TEA0676T Picture
See larger image
SeekIC No. : 004517210 Detail

TEA0676T: Features: · Dual head pre-amplifiers· Reverse head switching· Equalization with electronically switched time constants· Output level like Dolby level of 387.5 mV = 0 dB· Improved EMC behaviour.Pinou...

TEA0676T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA0676T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Dual head pre-amplifiers
· Reverse head switching
· Equalization with electronically switched time constants
· Output level like Dolby level of 387.5 mV = 0 dB
· Improved EMC behaviour.


Pinout

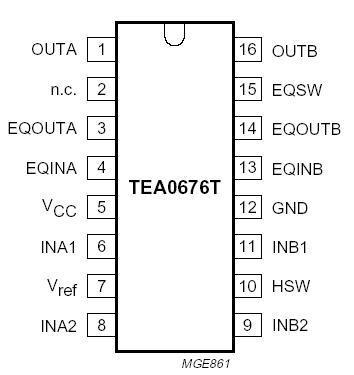

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   0 14 V
DV(12-x) voltage at pins 1 to 11, 13 to 16 with respect to pin 12   0 VCC V
Tstg storage temperature   -55 +150 °C
Tamb operating ambient temperature   -40 +85 °C
Ves electrostatic handling voltage for all pins note 1 -2000 +2000 V
note 2 -500 +500 V
Notes
1. Human body model: C = 100 pF; R = 1.5 k.
2. Machine model: C = 200 pF; R = 0 .


Description

The TEA0676T is a monolithic bipolar integrated circuit intended for applications in car radios. It includes head and equalization amplifiers with electronically switchable time constants. Furthermore it includes electronically switchable inputs for tape drivers with reverse heads.

The device TEA0676T will operate with power supplies in a range of 7.6 to 12.0 V. The output overload level increases with the increase in supply voltage, so it is advisable to use a regulated power supply or a supply with a long time constant.
