TDK5100

RF Receiver 2.1-4 V ASK/FSK Transmitter IC

product image

TDK5100 Picture
See larger image
SeekIC No. : 00614089 Detail

TDK5100: RF Receiver 2.1-4 V ASK/FSK Transmitter IC

TDK5100 Data Sheet

floor Price/Ceiling Price

US $ .61~1.06 / Piece | Get Latest Price
Part Number:
TDK5100
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $1.06
  • $.91
  • $.68
  • $.61
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Transmitter Package / Case : TSSOP-16
Operating Frequency : 870 MHz Operating Supply Voltage : 2.5 V, 3.3 V
Packaging : Reel

Description

Packaging : Reel
Type : Transmitter
Package / Case : TSSOP-16
Operating Supply Voltage : 2.5 V, 3.3 V
Operating Frequency : 870 MHz


Features:

` fully integrated frequency synthesizer
` VCO without external components
` ASK and FSK modulation
` switchable frequency range 433-435 MHz / 868-870 MHz
` high efficiency power amplifier (typically 5 dBm / 2 dBm)
` low supply current (typically 7mA)
` voltage supply range 2.1 - 4 V
` temperature range −40 ... +125
` power down mode
` low voltage sensor
` selectable crystal oscillator 6.78 MHz / 13.56 MHz
` programmable divided clock output for C
` low external component count


Application

· Keyless entry systems
· Remote control systems
· Alarm systems
· Communication systems

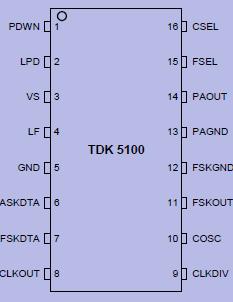

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
Min Max
Junction Temperature TJ -40 150
Storage Temperature Ts -40 125
Thermal Resistance RthJA   230 K/W
Supply Voltage VS -0.3 +4.0 V
Voltage at any pin
excluding pin 14 		Vpins −0.3 VS + 0.3 V
Voltage at pin 14 Vpin14 −0.3 2 * VS V No ESD-Diode to
VS
Current into pin 11 Ipin11 -10 10 mA
ESD integrity, all pins VESD -1 +1 kV JEDEC Standard
JESD22-A114-B
ESD integrity, all pins
excluding pin 14 		VESD -2 +2 kV JEDEC Standard
JESD22-A114-B
Ambient Temperature under bias: TA = −40 to +125
Note: All voltages referred to ground (pins) unless stated otherwise.
Pins 5, 12 and 13 are grounded.


Description

The TDK 5100 is a single chip ASK/ FSK transmitter for the frequency bands 433-435 and 868-870 MHz. The IC offers a high level of integration and needs only a few external components.

The device TDK 5100 contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna.

A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additionally features like a power down mode, a low power detect, a selectable crystal oscillator frequency and a divided clock output are implemented. The IC can be used for both ASK and FSK modulation.




Parameters:

Technical/Catalog InformationTDK5100
VendorInfineon Technologies
CategoryRF and RFID
Features-
Package / Case16-TSSOP
PackagingTape & Reel (TR)
ApplicationsRemote Control, RKE, Security Systems
Data Rate - Maximum-
Frequency433 ~ 435MHz; 866 ~ 870MHz
Modulation or ProtocolASK, FSK
Current - Transmitting7mA
Operating Temperature-40°C ~ 125°C
Power - Output5dBm
Voltage - Supply2.1 V ~ 4 V
Memory Size-
Data InterfacePCB, Surface Mount
Antenna ConnectorPCB, Surface Mount
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TDK5100
TDK5100
