TDF8771A

Features: ` 8-bit resolution` Sampling rate up to 35 MHz` Internal reference voltage regulator` No deglitching circuit required` Large output voltage range` 1 k output load` Power dissipation only 200 mW` Single 5 V power supply` 44-pin QFP package` Operating ambient temperature from -40 to +85 .A...

product image

TDF8771A Picture
See larger image
SeekIC No. : 004517070 Detail

TDF8771A: Features: ` 8-bit resolution` Sampling rate up to 35 MHz` Internal reference voltage regulator` No deglitching circuit required` Large output voltage range` 1 k output load` Power dissipation only 2...

TDF8771A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDF8771A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 8-bit resolution
` Sampling rate up to 35 MHz
` Internal reference voltage regulator
` No deglitching circuit required
` Large output voltage range
` 1 k  output load
` Power dissipation only 200 mW
` Single 5 V power supply
` 44-pin QFP package
` Operating ambient temperature from -40 to +85 .


Application

· General purpose high-speed digital-to-analog conversion
· Digital TV
· Graphic display
· Desktop video processing.


Pinout

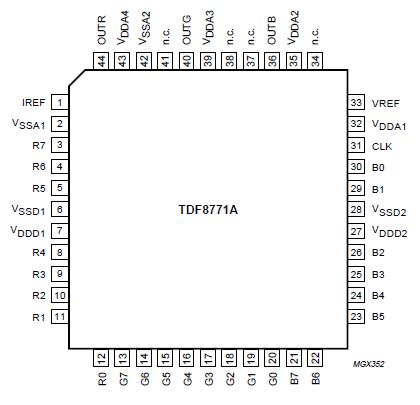

Connection Diagram


Description

The TDF8771A is a triple 8-bit video Digital-to-Analog Converter (DAC). It converts the digital input signals into analog voltage outputs at a maximum conversion rate of 35 MHz.

The DACs TDF8771A are based on resistor-string architecture with integrated output buffers. The output voltage range is determined by a built-in reference source.

The device TDF8771A is fabricated in a 5 V, CMOS process that ensures high functionality with low power dissipation.
