Product Details

Description

Features:

·HIGH OUTPUT CURRENT
·ADJUSTABLE SHORT-CIRCUIT PROTECTION
·INTERNAL THERMAL PROTECTION WITH HYSTERESIS TO AVOID THE INTERMEDIATE OUTPUT LEVELS
·LARGE SUPPLYVOLTAGERANGE: 8 TO 30V

Pinout

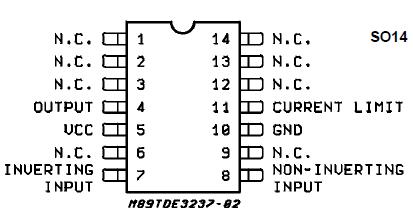

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	36	V
V_ID	Differantial Input Voltage	36	V
V_I	Input Voltage	36	V
I_O	Output Current	500	mA
P_tot	Power Dissipation	Internally Limited	W
T_stg	Storage Temperature Range	65 to + 150
T_oper	Operating Free-air Temperature Range	25 to + 85

Description

The TDE3237 is a monolithic amplifier designed for high-current and high-voltage applications, specIally to drive lamps, relays and stepping motors.

The device TDE3237 is essentially blow-out proof. Current limiting is available to limit the peak output current to a safe value, the adjustment only requires one external resistor. In addition, thermal shut down is provided to keep the IC from overheating. If external dissipation becomes too great, the driver will shut down to prevent excessive heating.

The TDE3237 output is also protected from short-circuits with the positive power supply.

The TDE3237 device operates over a wide range of supply voltages from standard ±15V operational amplifier supplies down to the single 12V or 24V used for industrial electronic systems.
