Product Details

Description



Features:

·OUTPUT CURRENT UP TO 500 mA
·OFFSET VOLTAGENULL CAPABILITY
·SHORT-CIRCUIT PROTECTION
·THERMAL OVERLOADPROTECTION
·PLASTIC PACKAGE FOR EASY ASSEMBLY

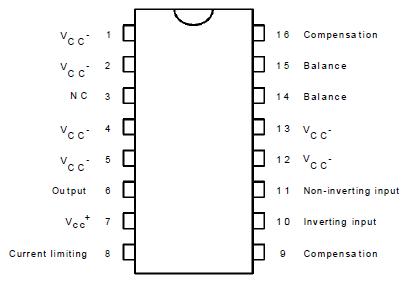

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage ± 18 V
Vi Input Voltage ± 15 V
Vid Differential Input Voltage ± 30 V
IO Output Current* 0.75 A
Ptot Power Dissipation 7.5 W
Toper Operating Free-air Temperature Range TDB7910
TDA7910		 0 to +70
-40 to +105
Tstg Storage Temperature Range -65 to +150
* Under short-circuit conditions, the safe operating area and dc power dissipation limi tations must be observed.


Description

The TDB7910 andTDA7910 are internally compensated medium power operational amplifiers intended for use in those applications requiring load currents of several hundred milliamperes. Applications include servo amplifiers, driver interfaces, precision power comparators and motor speedcontrol.

These amplifiers aredesignedto operatefromasingle or dual power supplies and the input commonmode range includes the negative supply if balance inputs are tied to the negative supply.

The TDB7910 and TDA7910 are thermal overload and short-circuit protected.
