TDA 4916 GG

Features: • High clock frequency• Low current drain• High reference accuracy• All monitoring functionsPinoutSpecifications Parameter Symbol Limit Values Unit Test Condition min. max. Supply voltage; VS,VS QSIP VS,VVSQSIP 0.3 17 V VI SYN &...

product image

TDA 4916 GG Picture
See larger image
SeekIC No. : 004516016 Detail

TDA 4916 GG: Features: • High clock frequency• Low current drain• High reference accuracy• All monitoring functionsPinoutSpecifications Parameter Symbol Limit Values Unit ...

TDA 4916 GG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA 4916 GG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High clock frequency
• Low current drain
• High reference accuracy
• All monitoring functions


Pinout

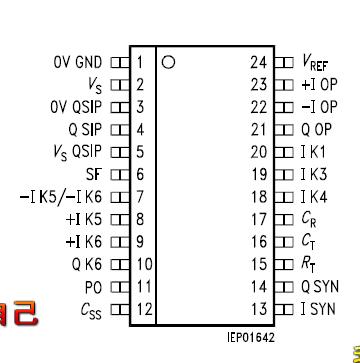

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Test Condition
min.
max.
Supply voltage; VS,VS QSIP VS,VVSQSIP 0.3 17 V VI SYN > 5 V or
VI SYN < 0 V
I OP, I K1, I K3, I K4, I K5, I K6, VI 0.3 17 V
I SYN VI SYN 0 5 V
  II SYN 3 3 mA
Q SYN VQ SYN 0.3 5 V
Frequency Generator; CT, RT VCT, RT 0.3 5 V VCT > 5 V
  ICT, RT 0 3 mA
Ramp Generator; CR VCR 0.3 VCRH V VCRH (see charact.)
VCR > VCRH
  ICR 0 3 mA
Reference voltage; VREF VREF 0.3 6 V VREF > 6 V or
VREF < 0.3 V
  IREF 10 10 mA
Output Opamp; Q OP Inhibited VQ OP 0.3 17 V
Conducting IQ OP 0 5 mA
Output Overcurrent Turn-OFF;Q K6

Inhibited		 VQ K6 0.3 17 V
Conducting IQ K6 0 5 mA
Driver output; Q SIP VQ SIP 0.3 VS V 1)
Q SIP clamping diodes IQ SIP -10 10 mA VQ SIP > VS or
VQ SIP < 0.3 V
Soft start; CSS VCSS 0.3 VSSH V VSSH (see charact.)
VSS > VSSH
  ICSS 0 100 mA
Pulse omission; PO VPO 0.3 VPOH V VPOH (see charact.)
VPO > VPOH
  IPO 0 3 mA
Series feed; SF VSF 0.3 17 V
Junction temperature Tj 65 150 °C
Storage temperature Ts 65 150 °C
Thermal resistance system - ambient Rth S/A   60 K/W
