TDA 4862

Features: • IC for sinusoidal line-current consumption• Power factor approaching 1• Controls boost converter as an active harmonics filter• Internal start-up with low current consumption• Zero current detector for discontinuous operation mode• High current totem...

product image

TDA 4862 Picture
See larger image
SeekIC No. : 004516015 Detail

TDA 4862: Features: • IC for sinusoidal line-current consumption• Power factor approaching 1• Controls boost converter as an active harmonics filter• Internal start-up with low current...

TDA 4862 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA 4862
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• IC for sinusoidal line-current consumption
• Power factor approaching 1
• Controls boost converter as an active harmonics filter
• Internal start-up with low current consumption
• Zero current detector for discontinuous operation mode
• High current totem pole gate driver
• Trimmed ± 1.4% internal reference
• Undervoltage lock-out with hysteresis
• Very low start-up current consumption
• Pin compatible to world standard
• Fast overvoltage regulator
• Current sense input with internal low pass filter


Pinout

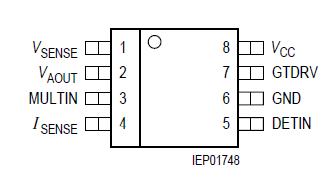

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Notes
min.
max.
Supply voltage at VCC Pin 8
VCC
0.3
V

supply + Z-current VCC-GND Pin 8
ICCZ
70
mA
 observe Pmax
Current into GTDRV Pin 7
IGTDRV
400
500
mA
 observe Pmax
Clamping current into GTDRV Pin 7
IGTDCH
100
mA
 VGTDRV > VCC
Clamping current into GTDRV Pin 7
IGTDCL
100
mA
 VGTDRV < 0.3 V
Voltage at VSENSE Pin 1
VVSENSE
0.3
17
V

Voltage at VAOUT Pin 2
VVAOUT
0.3
6
V

Voltage at MULTIN Pin 3
VMULTIN
0.3
17
V

Voltage at ISENSE Pin 4
VISENSE
10
17
V

Current into DETIN Pin 5
IDETINH
50
mA
 VDETIN> 6 V
Current into DETIN Pin 5
IDETINL
10
mA
 VDETIN < 0.9 V
Junction temperature
Tj
40
150
°C

Storage temperature
Tstg
50
150
°C

Thermal resistance system-air
TDA 4862
RthSA
100
K/W
 P-DIP-8-1
TDA 4862 G
RthSA
180
K/W
 P-DSO-8-1



Description

The TDA 4862 is excellent convenient for designing a preconverter in ballasts and switched mode power supplies with sinusoidal line current consumption and a power factor approaching unity.

The TDA 4862 controls a boost converter as an active harmonics filter in a discontinuous mode (free oscillating triangular shaped current mode).

The TDA 4862 comprises an internal start-up timer, a high gain voltage amplifier, an one quadrant multiplier for approaching unity power factor, a zero current detector, PWM and logic circuitry, and totem pole MOSFET gate driver. Protective features are: input undervoltage lockout with hysteresis, VCC zener clamp, cycle-by-cycle current limiting, output voltage limiting for fast and slow load changes up to open circuit, and a sinking gate driver current activated whenever undervoltage mode occurs.

The output voltage of this preconverter is regulated with high accuracy. Therefore the device can be used for world-wide line voltages without switches. The TDA 4862 is the improved version of the TDA 4817 with a pinout equivalent to world standard.
