TDA9965

Features: Clamp and Track/Hold (CTH) circuit with adjustablebandwidth,ProgrammableGainAmplifier(PGA),12-bitAnalog-to-Digital Converter(ADC) and reference regulatorFully programmable via a 3-wire serial interfaceSampling frequency up to 30MHzPGA gain from 0to36dB (in 0.05dB steps)CTH programmable b...

product image

TDA9965 Picture
See larger image
SeekIC No. : 004517008 Detail

TDA9965: Features: Clamp and Track/Hold (CTH) circuit with adjustablebandwidth,ProgrammableGainAmplifier(PGA),12-bitAnalog-to-Digital Converter(ADC) and reference regulatorFully programmable via a 3-wire ser...

TDA9965 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9965
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Clamp and Track/Hold (CTH) circuit with adjustable
bandwidth,ProgrammableGainAmplifier(PGA),12-bit
Analog-to-Digital Converter(ADC) and reference regulator
Fully programmable via a 3-wire serial interface
Sampling frequency up to 30MHz
PGA gain from 0to36dB (in 0.05dB steps)
CTH programmable bandwidth from 35to284MHz typical
Standby mode (20mW typical)
Low power consumption of only 425mW typical
5V operation and 2.5 to 5.25V operation for the digital outputs


Application

CCD camera systems.


Pinout

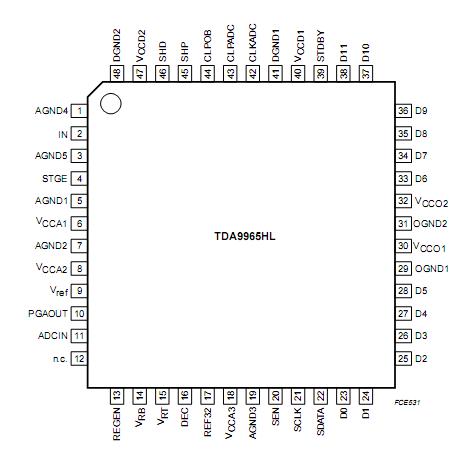

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN MAX. UNIT
VCCA analog supply voltage note1 -0.3 +7.0 V
VCCD digital supply voltage note1 -0.3  +7.0  V
VCCO digital output supply voltage note1 -0.3  +7.0  V
VCC supply voltage difference
between VCCA andVCCD
between VCCD andV CCO		    -1.0
-1.0		  +1.0
+4.0		 V
V
Vi input voltage referenced to AGND  -0.3  +7.0  V
Io output current    -10  +10  mA
Tstg storage temperature    -55  +150  °C
Tamb ambient temperature    -20  +75 °C
Tj junction temperature    -  150  °C



Description

The TDA9965 is a 12-bit analog-to-digital interface for a CCDcamera.ThedeviceincludesaCTHcircuit,PGAand a low-power 12-bit ADC, together with its reference voltage regulator. The CTH has a bandwidth circuit controlled by on-chip DACs via a serial interface. A 10-bit digital clamp controls the ADC input clamp level.
