Product Details

Description



Features:

· Correlated Double Sampling (CDS), Programmable
    Gain Amplifier (PGA), 12-bit Analog-to-Digital
    Converter (ADC) and reference regulator included
· Fully programmable via a 3-wire serial interface
· Sampling frequency up to 30 MHz
· PGA gain range of 24 dB (in steps of 0.1 dB)
· Low power consumption of only 205 mW at 2.7 V
· Power consumption in standby mode of 4.5 mW (typ.)
· 3.0 V operation and 2.5 to 3.6 V operation for the digital outputs
· All digital inputs accept 5 V signals
· Active control pulses polarity selectable via serial interface
· 8-bit DAC included for analog settings
· TTL compatible inputs, CMOS compatible outputs.
· Low-power, low-voltage CCD camera systems.



Pinout

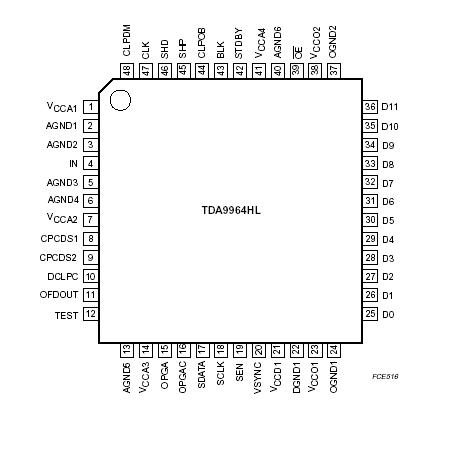

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCCA analog supply voltage note 1 -0.3 +7.0 V
VCCD digital supply voltage

 note 1

-0.3

 +7.0 V
VCCO digital outputs supply voltage note 1 -0.3 +7.0 V
DVCC supply voltage difference
between VCCA and VCCD
between VCCA and VCCO -
between VCCD and VCCO		   -0.5
-0.5
-0.5		 +0.5
+1.2
+1.2		 V
Vi input voltage
 referenced to AGND -0.3 +7.0 V
Io data output current   - ±10 mA
Tstg storage temperature   -55 +150 °C
Tamb ambient temperature   -20 +75 °C
Tj junction temperature - +150 °C



Description

The TDA9964 is a 12-bit analog-to-digital interface for CCD cameras. The device includes a correlated double sampling circuit, PGA, clamp loops and a low-power 12-bit\ ADC together with its reference voltage regulator. The PGA gain and the ADC input clamp level are controlled via the serial interface. An additional DAC is provided for additional system controls; its output voltage range is 1.0 V p-p, which is available at pin OFDOUT.
