TDA9962

Features: · Correlated Double Sampling (CDS), Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC) and reference regulator included· Fully programmable via a 3-wire serial interface· Sampling frequency up to 20 MHz· PGA gain range of 24 dB (in steps of 0.1 dB)· Low power con...

product image

TDA9962 Picture
See larger image
SeekIC No. : 004517006 Detail

TDA9962: Features: · Correlated Double Sampling (CDS), Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC) and reference regulator included· Fully programmable via a 3-wire serial int...

TDA9962 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9962
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Correlated Double Sampling (CDS), Programmable
    Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter
    (ADC) and reference regulator included
· Fully programmable via a 3-wire serial interface
· Sampling frequency up to 20 MHz
· PGA gain range of 24 dB (in steps of 0.1 dB)
· Low power consumption of only 140 mW at 2.7 V
· Power consumption in standby mode of 4.5 mW (typ.)
· 3.0 V operation and 2.2 to 3.6 V operation for the digital outputs
· Low-power, low-voltage CCD camera systems.



Application

Low-power, low-voltage CCD camera systems.


Pinout

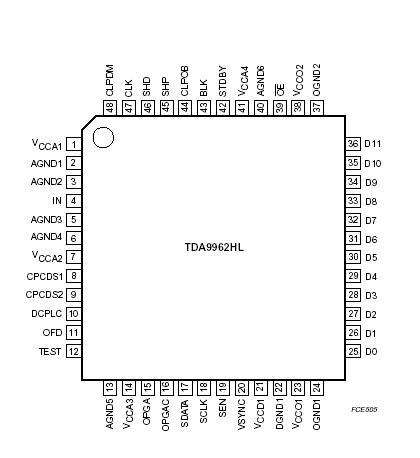

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCCA analog supply voltage note 1 -0.3 +7.0 V
VCCD digital supply voltage

 note 1

-0.3

 +7.0 V
VCCO digital outputs supply voltage note 1 -0.3 +7.0 V
DVCC supply voltage difference
between VCCA and VCCD
between VCCA and VCCO -
between VCCD and VCCO		   -0.5
-0.5
-0.5		 +0.5
+1.2
+1.2		 V
Vi input voltage
 referenced to AGND -0.3 +7.0 V
Io data output current   - ±10 mA
Tstg storage temperature   -55 +150 °C
Tamb ambient temperature   -20 +75 °C
Tj junction temperature note 1 note 2 - +150 °C



Description

The TDA9962 is a 12-bit analog-to-digital interface for CCD cameras. The device includes a correlated double sampling circuit, PGA, clamp loops and a low-power 12-bit ADC together with its reference voltage regulator. The PGA gain and the ADC input clamp level are controlled via the serial interface.
