TDA9885

Features: 5V supply voltageGain controlled wide-band Vision IntermediateFrequency (VIF) amplifier, AC-coupledMultistandard true synchronous demodulation withactive carrier regeneration: very linear demodulation,good intermodulation figures, reduced harmonics, andexcellent pulse responseGated phase...

product image

TDA9885 Picture
See larger image
SeekIC No. : 004516989 Detail

TDA9885: Features: 5V supply voltageGain controlled wide-band Vision IntermediateFrequency (VIF) amplifier, AC-coupledMultistandard true synchronous demodulation withactive carrier regeneration: very linear ...

TDA9885 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9885
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V supply voltage
Gain controlled wide-band Vision Intermediate
Frequency (VIF) amplifier, AC-coupled
Multistandard true synchronous demodulation with
active carrier regeneration: very linear demodulation,
good intermodulation figures, reduced harmonics, and
excellent pulse response
Gated phase detector for LandL-accent standard
Fully integrated VIF Voltage Controlled Oscillator
VCO), alignment-free, frequencies switchable for all
negative and positive modulated standards via I2C-bus
Digital acquisition help, VIF frequencies of33.4,33.9,
38.0,38.9,45.75,and58.75MHz
4MHz reference frequency input: signal from
Phase-Locked Loop (PLL) tuning system or operating
VIF Automatic Gain Control (AGC) detector for gain
control, operating as peak sync detector for negative
modulated signals and as a peak white detector for
positive modulated signals
External AGC setting via pinOP1
PrecisefullydigitalAutomaticFrequencyControl(AFC
detector with 4-bit digital-to-analog converter, AFC bit readable via I2C-bus
TakeOver Point (TOP) adjustable via I 2C-bus or
alternatively with potentiometer
Fully integrated sound carrier trap for4.5,5.5,
6.0,and6.5MHz, controlled by FM-PLL oscillator
SoundIF (SIF) input for single reference Quasi Split
Sound (QSS) mode, PLL controlled


Application

TV, VTR,PC,and STB applications.


Pinout

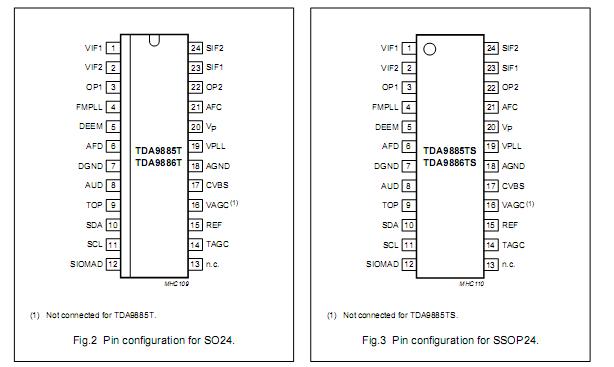

Connection Diagram


Specifications

SYMBO PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage - 5.5 V
Vn Voltage on
pinsVIF1,VIF2,SIF1,SIF2,OP1,OP2,V
,andFMPLL pinTAGC		   0
0		 VP
8.8		 V
V
Vi short-circuit time to ground or VP
   - 10 S
Tstg storage temperature   -25 +150 °C
Tamb ambient temperature
  TDA9885T(SO24),
  TDA9885TS(SSOP24),
  TDA9886T(SO24)
  TDA9886TS(SSOP24)
  TDA9885HN(HVQFN32)
  TDA9886HN(HVQFN32)		   -20
-20		 +70
+85		 °C
Ves electrostatic discharge voltage on all pins note1 -400 +400 V
note2 -4000 +3500 V



Description

   The TDA9885 is an alignment-free multistandard (PALand NTSC) vision and sound IFsignal PLL demodulator for negative modulation only and FMprocessing. The TDA9886 is an alignment-free multistandard (PAL,SECAMandNTSC)visionandsoundIFsignalPLL demodulator for positive and negative modulation, ncluding sound AMand FMprocessing.
