TDA9875A

Features: Sound IF(SIF) input switch e.g. to select betweenterrestrial TVSIF and SATSIF sourcesSIF AGC with 24dB control rangeSIF 8-bit Analog-to-Digital Converter (ADC)Differential Quadrature Phase Shift Keying (DQPSK)demodulation for different standards, simultaneouslywith 1-channel FMdemodulati...

product image

TDA9875A Picture
See larger image
SeekIC No. : 004516984 Detail

TDA9875A: Features: Sound IF(SIF) input switch e.g. to select betweenterrestrial TVSIF and SATSIF sourcesSIF AGC with 24dB control rangeSIF 8-bit Analog-to-Digital Converter (ADC)Differential Quadrature Phase...

TDA9875A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9875A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Sound IF(SIF) input switch e.g. to select between
terrestrial TVSIF and SATSIF sources
SIF AGC with 24dB control range
SIF 8-bit Analog-to-Digital Converter (ADC)
Differential Quadrature Phase Shift Keying (DQPSK)
demodulation for different standards, simultaneously
with 1-channel FMdemodulation
Near Instantaneous Companded Audio Multiplex
(NICAM) decoding (B/G, IandLstandard)
Two-carrier multistandard FMdemodulation
(B/G,D/Kand Mstandard)
Decoding for three analog multi-channel systems
(A2,A2+and A2*) and satellite sound
OptionalAMdemodulationforsystemL,simultaneouslywith NICAM
Programmableidentification(B/G,D/KandMstandard)
and different identification times.


Pinout

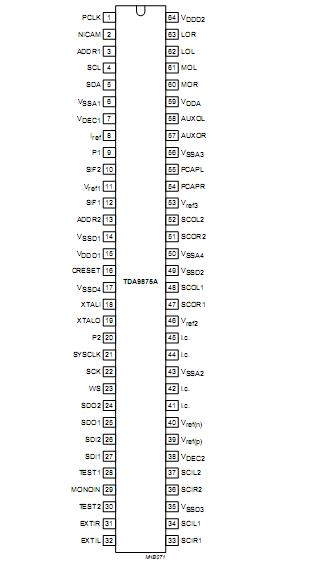

Connection Diagram


Specifications

SYMBO PARAMETER CONDITIONS MIN. MAX. UNIT
VDD DC supply voltage   -0.5 +6.5 V
VDD voltage differences between two V pins
DD		   - 550 mV
IIK DC input clamp diode current
 		 - ±10 mA
IOK DC output clamp diode current output type 4mA - ±20  mA
Io DC output source or sink current output type 4mA - ±20  mA
IDDD
ISSD
 		 DC V or V current per digital supply pin
DDD SSD		   - 62  mA
IDDA
, ISSA		 DC V or V current per analog supply pin
DDA SSA		   - 28  mA
Ilu(prot) latch-up protection current   100 -   mA
P power dissipation per output   - 100  mW
Ptot
 total power dissipation   - 0.9  W
Ttsg storage temperature   -55 125  °C
Tamb operating ambient temperature   -20 70 °C
Ves electrostatic handling note1 2000 - V
note2 200 -  V



Description

   The TDA9875A is a single-chip Digital TVSound Processor (DTVSP) for analog and digital multi-channel sound systems in TVsets and satellite receivers.
