Features:

Multi-source selector switches six AF inputs (three
   stereo sources or six mono sources)
Each of the input signals can be switched to each of the
   outputs (crossbar switch)
Outputs for loudspeaker channel, headphone channel
   and peri-TV connector (SCART)
Switchable spatial stereo and pseudo stereo effects
Audio surround decoder can be added externally
Two general purpose logic output ports
I2C-bus control of all functions.


Pinout

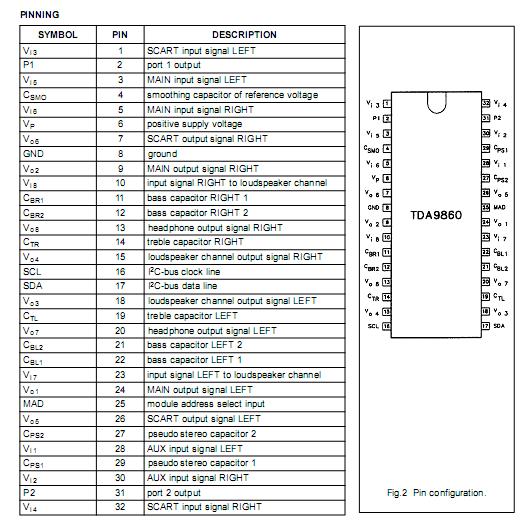

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX UNIT
VP supply voltage (pin 6) 0  10  V
Vn voltage on all pins, ground excluded  0  VP  V
IO output current
at pins 15, 18, 13, 20, 7 and 26
at pins 2 and 31		  -
-		  2.5
1.5		  mA
mA
Ptot total power dissipation  -  850  mW
Tstg storage temperature  -25  +150  °C
Tamb operating ambient temperature  0  +70 °C
VESD electrostatic handling for all pins (note 1)  -  ±300  V
electrostatic handling for all pins (note 2)  -  ±200  V



Description

    The TDA9860 provides control facilities for the main, the headphone and the SCART channel of a TV set. Due to
extended switching possibilities, signals from 3 stereo sources can be handled.
