TDA9852

Features: · Quasi alignment-free application due to automatic adjustment of channel separation via I2C-bus· High integration level with automatically tuned integrated filters· Input level adjustment I2C-bus controlled· Alignment-free SAP processing· dbx noise reduction circuit· Power supply· I2C-b...

product image

TDA9852 Picture
See larger image
SeekIC No. : 004516973 Detail

TDA9852: Features: · Quasi alignment-free application due to automatic adjustment of channel separation via I2C-bus· High integration level with automatically tuned integrated filters· Input level adjustment...

TDA9852 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9852
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Quasi alignment-free application due to automatic
    adjustment of channel separation via I2C-bus
· High integration level with automatically tuned integrated filters
· Input level adjustment I2C-bus controlled
· Alignment-free SAP processing
· dbx noise reduction circuit
· Power supply
· I2C-bus transceiver.



Pinout

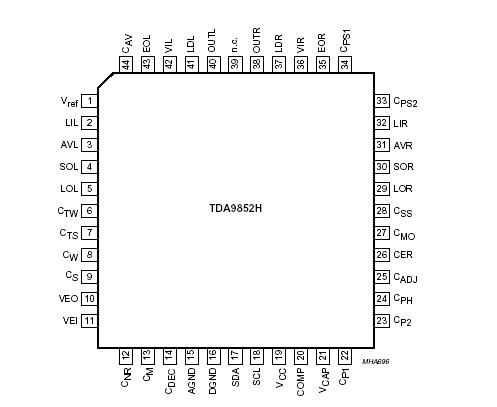

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VCC supply voltage 0 9.5 V
Vn voltage of all other pins to pin VCC

 0 VCC V
Tamb operating ambient temperature -20 +70 °C
Tstg storage temperature
 -65 +150 °C
Ves electrostatic handling; note 1



Description

The TDA9852 is a bipolar-integrated BTSC stereo decoder with hi-fi audio processor (I2C-bus controlled) for application in TV sets, VCRs and multimedia.
