TDA9850

Features: · Quasi alignment-free application due to automatic adjustment of channel separation via I2C-bus· Dbx noise reduction circuit· Dbx decoded stereo, Second Audio Program (SAP) or mono selectable at the AF outputs· Additional SAP output without dbx, including de-emphasis· High integration l...

product image

TDA9850 Picture
See larger image
SeekIC No. : 004516971 Detail

TDA9850: Features: · Quasi alignment-free application due to automatic adjustment of channel separation via I2C-bus· Dbx noise reduction circuit· Dbx decoded stereo, Second Audio Program (SAP) or mono select...

TDA9850 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9850
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Quasi alignment-free application due to automatic
   adjustment of channel separation via I2C-bus
· Dbx noise reduction circuit
· Dbx decoded stereo, Second Audio Program (SAP) or
    mono selectable at the AF outputs
· Additional SAP output without dbx, including de-emphasis
· High integration level with automatically tuned integrated filters
· Input level adjustment I2C-bus controlled
· Alignment-free SAP processing
· Stereo pilot PLL circuit with ceramic resonator,
    automatic adjustment procedure for stereo channel
    separation, two pilot thresholds selectable via I2C-bus
· Automatic pilot cancellation
· Composite input noise detector with I2C-bus selectable
    thresholds for stereo and SAP off
· I2C-bus transceiver.



Pinout

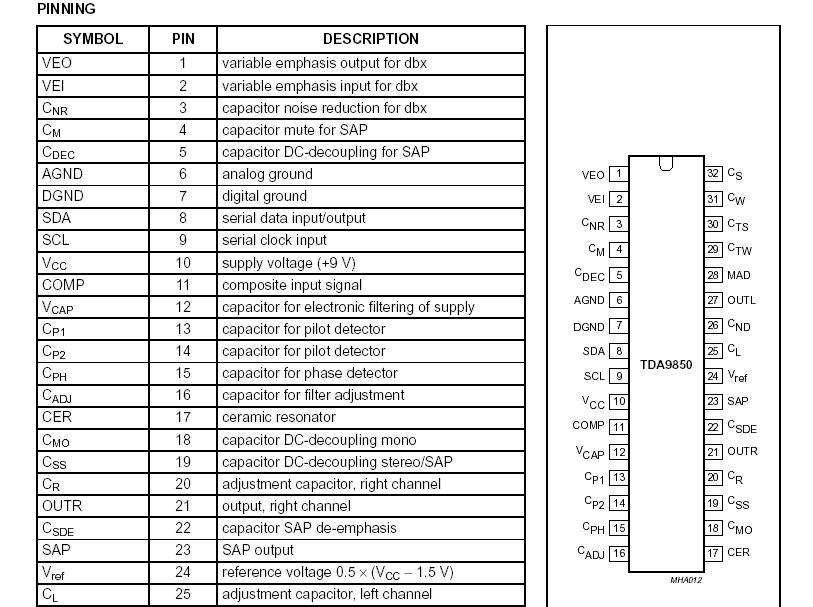

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage maximum chip temperature of 125 °C 0 10 V
VVCAP voltage of VCAP to GND

   0 VCC V
VVEO voltage of VEO to GND   0 12VCC V
VSDA voltage of SDA to GND
   0 8.5 V
VSCL voltage of all other pins to GND VCC 8.5 V 0 8.5 V
VCC < 8.5 V 0 VCC V
Tamb operating ambient temperature Tj < 125 °C -20 70 °C
Tstg storage temperature   -65 +150 °C
Ves electrostatic handling voltage HBM; note 1



Description

The TDA9850 is a bipolar-integrated BTSC stereo/SAP decoder (I2C-bus controlled) for application in TV sets, VCRs and multimedia.
