TDA9830

Features: Adjustment free wideband synchronous AM demodulatorAudio source-mute switch (low noise)Audio level according EN500495 to 8 V power supply or 12 V alternativeLow power consumption.PinoutSpecifications SYMBOL PARAMETER MIN. MAX UNIT V14-13 supply voltage VP1 -0.5 +8.9 V ...

product image

TDA9830 Picture
See larger image
SeekIC No. : 004516967 Detail

TDA9830: Features: Adjustment free wideband synchronous AM demodulatorAudio source-mute switch (low noise)Audio level according EN500495 to 8 V power supply or 12 V alternativeLow power consumption.PinoutSpe...

TDA9830 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9830
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Adjustment free wideband synchronous AM demodulator
Audio source-mute switch (low noise)
Audio level according EN50049
5 to 8 V power supply or 12 V alternative
Low power consumption.

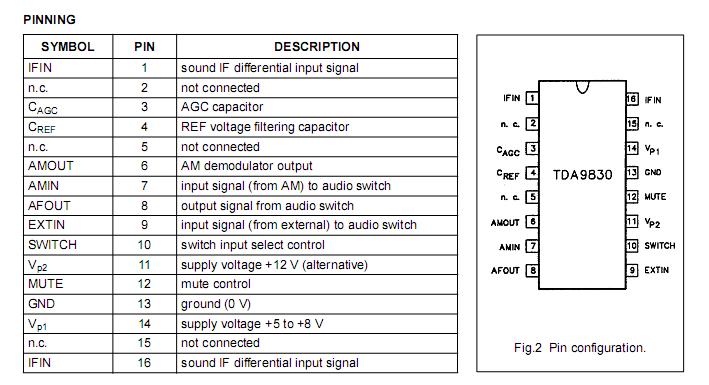

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX UNIT
V14-13 supply voltage VP1 -0.5  +8.9  V
V11-13 supply voltage VP2  -0.5  +13.3  V
V10, 12-13 switching voltage  -0.5  VP +0.5  V
Tamb operating ambient temperature  0  +70  °C
Tstg storage temperature  -25  +150 ° C



Description

     The TDA9830, a monolithic integrated circuit, is designed for AM-sound demodulation used in L- and L O-standard
The IC provides an audio source selector and also mute switch.
