TDA9829T

Features: · 5 V supply voltage· Gain controlled IF-amplifier· Mixer for DVB-IF downconversion· VCO for Quadrature Amplitude Modulation (QAM) carrier recovery· External VCO control· Internal and external AGC· DVB output level adjust via AGC adjust· High level DVB operational output amplifier· Mute ...

product image

TDA9829T Picture
See larger image
SeekIC No. : 004516966 Detail

TDA9829T: Features: · 5 V supply voltage· Gain controlled IF-amplifier· Mixer for DVB-IF downconversion· VCO for Quadrature Amplitude Modulation (QAM) carrier recovery· External VCO control· Internal and exte...

TDA9829T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9829T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 5 V supply voltage
· Gain controlled IF-amplifier
· Mixer for DVB-IF downconversion
· VCO for Quadrature Amplitude Modulation (QAM) carrier recovery
· External VCO control
· Internal and external AGC
· DVB output level adjust via AGC adjust
· High level DVB operational output amplifier
· Mute switch for DVB output
· Tuner AGC with adjustable takeover point (TOP)
· AFC detector without extra reference circuit
· Stabilizer circuit for ripple rejection and to achieve
    constant output signals.



Pinout

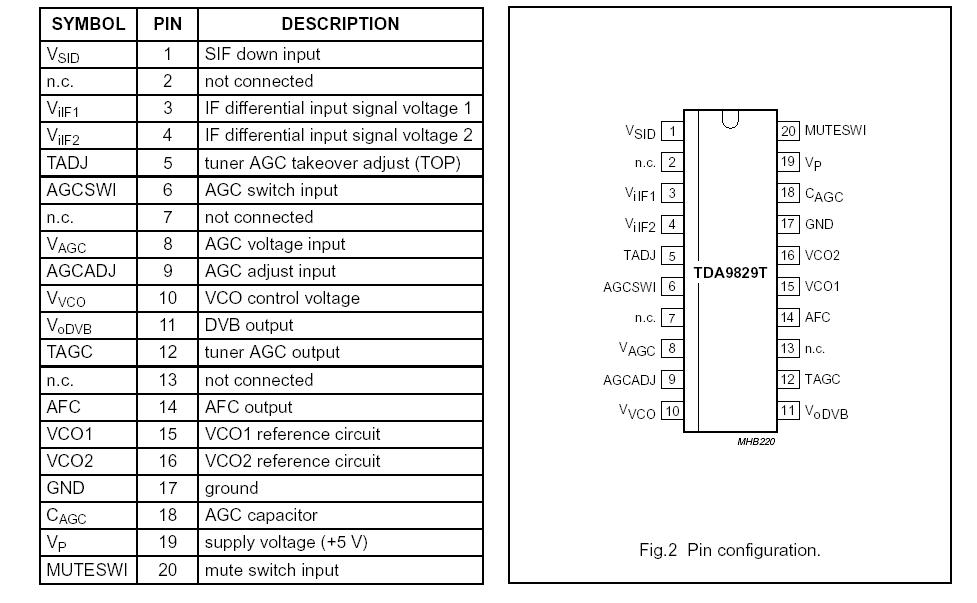

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage (pin 19) maximum chip temperature of 125 °C 0 5.5 V
Vn voltage at pins
1 to 10, 13, 14 and 18 to 20

   0 VP V
tsc(max) maximum short-circuit time   - 10 s
V12 tuner AGC output voltage
   0 13.2 V
Tstg storage temperature   -25 +150 °C
Tamb operating ambient temperature   -20 70 °C
Ves electrostatic handling voltage machine model class B -300 +300 V



Description

The TDA9829T is an integrated circuit for DVB-IF processing.
