TDA9821

Features: · Two alignment-free PLL FM demodulators· Automatic second sound carrier mute· Mono and dual channel application· Low power consumption· Few external components required.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VP supply voltage (pin 14) -0.5 +9.0...

product image

TDA9821 Picture
See larger image
SeekIC No. : 004516965 Detail

TDA9821: Features: · Two alignment-free PLL FM demodulators· Automatic second sound carrier mute· Mono and dual channel application· Low power consumption· Few external components required.PinoutSpecificatio...

TDA9821 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9821
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Two alignment-free PLL FM demodulators
· Automatic second sound carrier mute
· Mono and dual channel application
· Low power consumption
· Few external components required.



Pinout

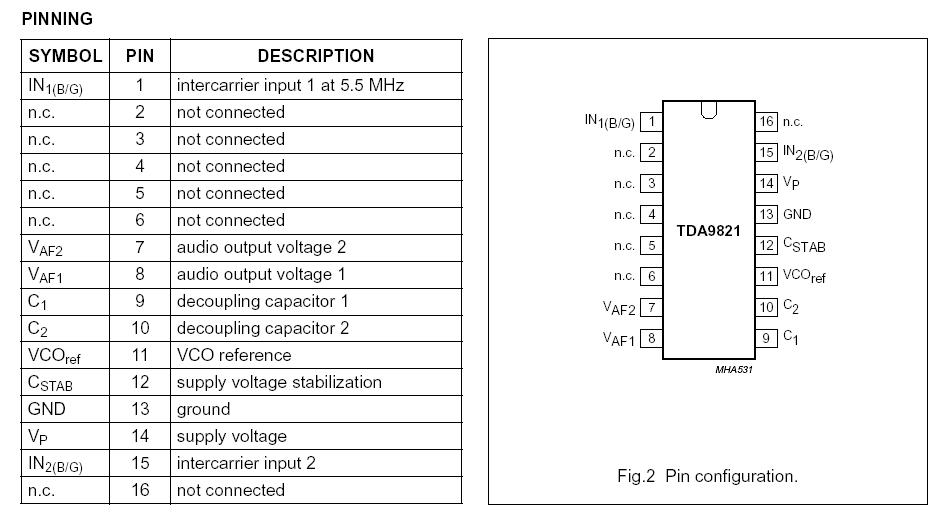

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage (pin 14)   -0.5 +9.0 V
Vi input signal (pins 1, 2, 3, 15 and 16)
   -0.5 +5.0 V
Vsw switching voltage (pins 5 and 6)   --0.5 VP + 0.5 V
V19 short-circuit time (each pin except pins 13 and 14 to
be tested; one at the time)
   - 10 s
Tstg storage temperature
device -25 +125 °C
device in packing		   -25
-25		 +125
+85		 °C
°C
Tj junction temperature   - 150 °C
Tamb operating ambient temperature   0 70 °C
Ves electrostatic handling for all pins note 1 -500 +500 v
note 2 -4000 +4000 V



Description

   The TDA9821 is a monolithic, integrated, TV FM intercarrier sound demodulator for all FM standards. The circuit contains two separate FM demodulators using Phase Locked Loop (PLL) reference frequency generation. The circuit requires a minimum number of external components.
