Features: 5V supply voltageApplicable for Intermediate Frequencies (IFs) of38.9,45.75and58.75MHzGain controlled wide band VideoIF (VIF) amplifier (AC-coupled)True synchronous demodulation with active carrierregeneration (very linear demodulation, goodintermodulation figures, reduced harmonics ande...

product image

TDA9817 Picture
See larger image
SeekIC No. : 004516961 Detail

TDA9817: Features: 5V supply voltageApplicable for Intermediate Frequencies (IFs) of38.9,45.75and58.75MHzGain controlled wide band VideoIF (VIF) amplifier (AC-coupled)True synchronous demodulation with activ...

TDA9817 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9817
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V supply voltage
Applicable for Intermediate Frequencies (IFs) of
38.9,45.75and58.75MHz
Gain controlled wide band VideoIF (VIF) amplifier (AC-coupled)
True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics and
excellentpulse response)
Robustness for over-modulation better than 105% due
to gated phase detector at L/Laccent standard and
PLL-bandwidthcontrolatnegativemodulatedstandards
Voltage Controlled Oscillator (VCO) frequency
switchablebetweenLandLaccent(alignmentexternal) picture carrier frequency
VIF Automatic Gain Control (AGC) detector for gain
control, operating as peak sync detector for B/G, peak
whitedetectorforL;signalcontrolledreactiontimeforL
Tuner AGC with adjustable TakeOver Point (TOP)
Automatic Frequency Control (AFC) detector without extra reference circuit


Pinout

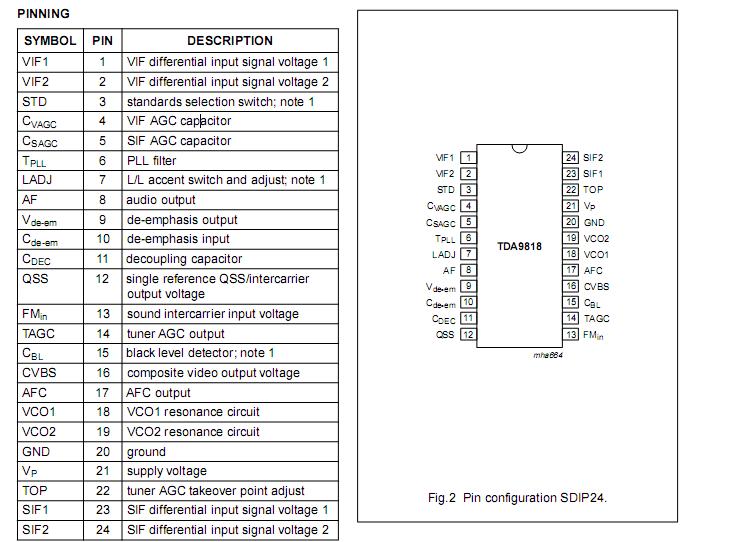

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX UNIT
VP supply voltage (pin 6) 0 10 V
Vn voltage on all pins, ground excluded 0 VP V
IO output current
at pins 15, 18, 13, 20, 7 and 26
at pins 2 and 31		 -
-		 2.5
1.5		 mA
mA
Ptot total power dissipation - 850 mW
Tstg storage temperature -25 +150 °C
Tamb operating ambient temperature -20 +70 °C
VESD electrostatic handling for all pins (note 1) -300 +300 V



Description

The TDA9817 is an integrated circuit for single standard visionIF signal processing and FMdemodulation. The TDA9818 is an integrated circuit for multistandard visionIF signal processing, soundAMandFM demodulation.
