Product Details

Description



Features:

5V supply voltage
Gain controlled wideband Video IF (VIF) amplifier
(AC-coupled)
True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics,
excellentpulse response)
Robustness for over-modulation better than 105% due
to gated phase detector at L/Laccent standard and PLL
bandwidth control for negative modulation standards
VCO (Voltage Controlled Oscillator) frequency can be
switched between LandL accent (alignment external)
picture carrier frequency
VIF AGC (Automatic Gain Control) detector for gain
control, operating as peak sync detector for B/G and
peak white detector forL; signalcontrolled reaction time
Tuner AGC with adjustable TakeOver Point (TOP)
AFC (Automatic Frequency Control) detector without
extra reference circuit
AC-coupled limiting amplifier for sound intercarrier



Pinout

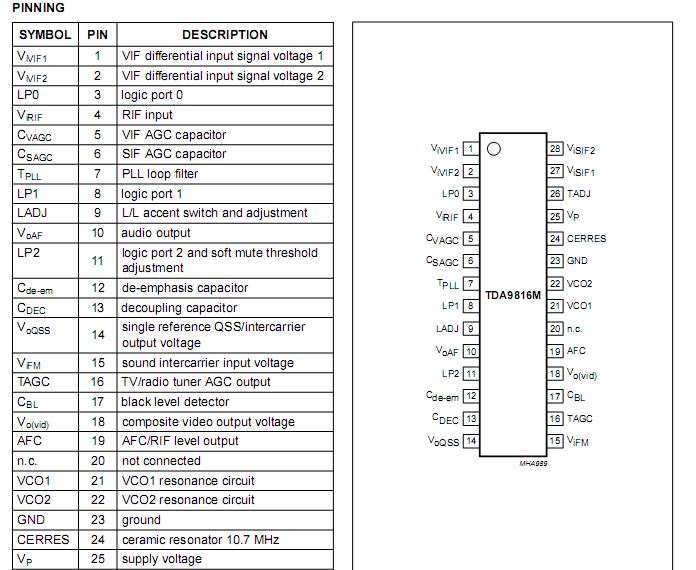

Connection Diagram


Specifications

SYMBO PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage - 5.5 V
Vn input voltage at pins1to13, 15to17,
19and23to28		   0
 VP
 V
V
TES short-circuit time to ground or VP
   0 13.5 S
VTAGC Tuner AGC output voltage   -25 +150 °C
Tamb operating ambient temperature   -20
 +70
 °C
Ves electrostatic discharge voltage on all pins
note2 -300 +300 V



Description

The TDA9816M is an integrated circuit for multistandard vision IF signal processing, sound AM and FM demodulation and FM radio demodulation in multimedia sets.
