TDA9815

Features: 5V supply voltageTwo switched VIF inputs, gain controlled wide bandVIF-amplifier (AC-coupled)True synchronous demodulation with active carrierregeneration (very linear demodulation, goodintermodulation figures, reduced harmonics,excellentpulse response)Robustness for over-modulation bett...

product image

TDA9815 Picture
See larger image
SeekIC No. : 004516959 Detail

TDA9815: Features: 5V supply voltageTwo switched VIF inputs, gain controlled wide bandVIF-amplifier (AC-coupled)True synchronous demodulation with active carrierregeneration (very linear demodulation, goodin...

TDA9815 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9815
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V supply voltage
Two switched VIF inputs, gain controlled wide band
VIF-amplifier (AC-coupled)
True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics,
excellentpulse response)
Robustness for over-modulation better than 105% due
to gated phase detector at L/Laccent standard
VCOfrequency switchable between Land L accent
(alignment external) picture carrier frequency
Separate video amplifier for sound trap buffering with high video bandwidth
VIF-AGC detector for gain control, operating as peak
sync detector for B/G, peak white detector for L and
peak level for MAC (optional external AGC);
signal controlled reaction time for L and MAC
Tuner AGC with adjustable takeover point (TOP)
AFC detector without extra reference circuit
AC-coupled limiter amplifier for sound intercarrier signal
with input switch for additional FM signal
Two alignment-free FM-PLL demodulators with highlinearity
SIF input for single reference QSS mode (PLL
controlled); SIF AGC detector for gain controlled SIF
amplifier; single reference QSS mixer able to operate in
high performance single reference QSS mode
AM demodulator without extra reference circuit
Stabilizer circuit for ripple rejection and to achieve constant output signals
ESD protection for all pins.



Pinout

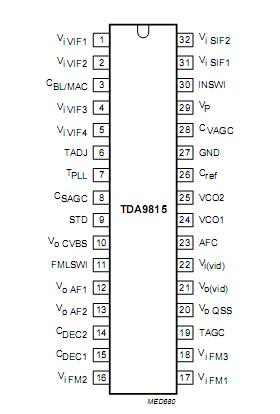

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX UNIT
VP supply voltage (pin 6) 0 10 V
Vn voltage on all pins, ground excluded 0 VP V
IO output current
at pins 15, 18, 13, 20, 7 and 26
at pins 2 and 31		 -
-		 2.5
1.5		 mA
mA
Ptot total power dissipation - 850 mW
Tstg storage temperature -25 +150 °C
Tamb operating ambient temperature -20 +70 °C
VESD electrostatic handling for all pins (note 1) -300 +300 V



Description

The TDA9815 is an integrated circuit for multistandard vision IF signal processing (inclusive MAC) and sound AM and dual FM demodulation, with single reference QSS-IF in TV and VCR sets.
