TDA9813T

Features: 5V supply voltageGain controlled wide band VIFamplifier (AC-coupled)True synchronous demodulation with active carrierregeneration (very linear demodulation, goodintermodulation figures, reduced harmonics,excellentpulse response)Separate video amplifier for sound trap buffering with high ...

product image

TDA9813T Picture
See larger image
SeekIC No. : 004516957 Detail

TDA9813T: Features: 5V supply voltageGain controlled wide band VIFamplifier (AC-coupled)True synchronous demodulation with active carrierregeneration (very linear demodulation, goodintermodulation figures, re...

TDA9813T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9813T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V supply voltage
Gain controlled wide band VIFamplifier (AC-coupled)
True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics,
excellentpulse response)
Separate video amplifier for sound trap buffering with high video bandwidth
VIF-AGC detector for gain control, operating as peak sync detector
Tuner AGC with adjustable takeover point (TOP)
AFC detector without extra reference circuit
AC-coupledlimiteramplifierforsoundintercarriersignal
Two alignment-free FM-PLL demodulators with highlinearity
SIF input for single reference QSS mode (PLL
controlled); SIF-AGC detector for gain controlled SIF
amplifier;singlereferenceQSSmixerabletooperatein
high performance single reference QSS mode
Stabilizer circuit for ripple rejection and to achieve
constant output signals
ESD protection for all pins.


Pinout

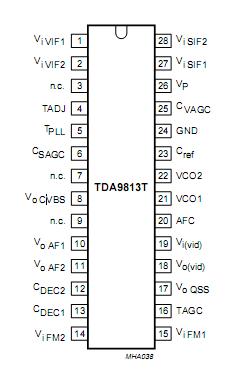

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX UNIT
VP supply voltage (pin 26) 0 10 V
Vn voltage on all pins, ground excluded 0 VP V
IO output current
at pins 15, 18, 13, 20, 7 and 26
at pins 2 and 31		 -
-		 2.5
1.5		 mA
mA
Ptot total power dissipation - 850 mW
Tstg storage temperature -25 +150 °C
Tamb operating ambient temperature -20 +70 °C
VESD electrostatic handling for all pins (note 1) -300 +300 V



Description

   The TDA9813T is an integrated circuit for vision IF signal processing and sound dual FM demodulation, with single
eference QSS-IF in TV and VCR sets. For negative modulation standards only.
