TDA9811

Features: · 5 V supply voltage· Two switched VIF inputs, gain controlled wide band VIF-amplifier (AC-coupled)· True synchronous demodulation with active carrier regeneration (very linear demodulation, good intermodulation figures, reduced harmonics, excellent pulse response)· Robustness for over-m...

product image

TDA9811 Picture
See larger image
SeekIC No. : 004516955 Detail

TDA9811: Features: · 5 V supply voltage· Two switched VIF inputs, gain controlled wide band VIF-amplifier (AC-coupled)· True synchronous demodulation with active carrier regeneration (very linear demodulatio...

TDA9811 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9811
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 5 V supply voltage
· Two switched VIF inputs, gain controlled wide band
    VIF-amplifier (AC-coupled)
· True synchronous demodulation with active carrier
    regeneration (very linear demodulation, good
    intermodulation figures, reduced harmonics,
    excellent pulse response)
· Robustness for over-modulation better than 105% due
    to gated phase detector at L/L accent standard
· VCO frequency switchable between L and L accent
   (alignment external) picture carrier frequency
· Separate video amplifier for sound trap buffering with
    high video bandwidth
· VIF-AGC detector for gain control, operating as peak
    sync detector for B/G and peak white detector for L
    (optional external AGC); signal controlled reaction time



Pinout

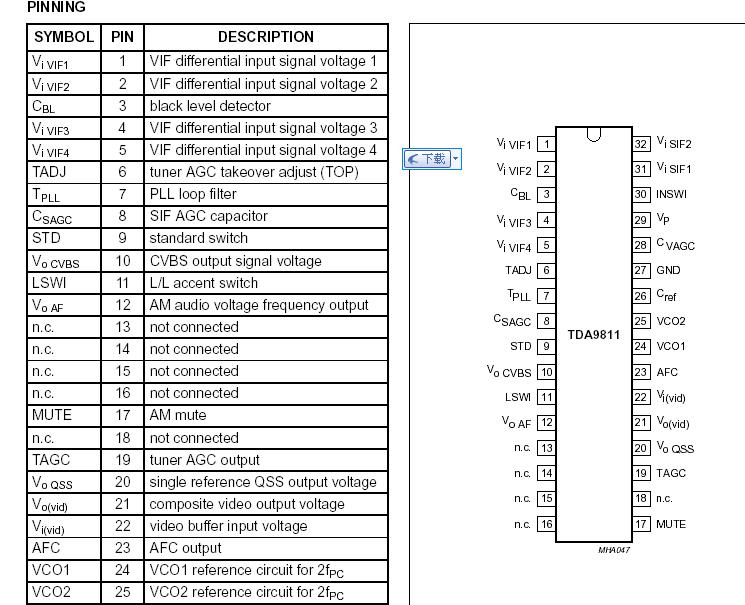

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage (pin 29) maximum chip temperature
of +120 °C; note 1
 0 5.5 V
Vi Vi voltage at pins 1 to 9, 11 to 19,
22, 23 and 28 to 32
   0 VP V
ts(max) maximum short-circuit time   - 10 s
V19 tuner AGC output voltage   0 13.2 V
Tstg storage temperature   -25 +150 °C
Tamb operating ambient temperature   -20 +70 °C
Vesd electrostatic handling voltage note 2 -300 +300 v



Description

The TDA9811 is an integrated circuit for multistandard vision IF signal processing and sound AM, with single reference QSS-IF in TV and VCR sets.
