TDA9809M

Features: 5V supply voltage Applicable at Intermediate Frequencies (IFs) of 38.9 and 45.75MHzGain controlled wideband Video IF (VIF) amplifier (AC-coupled)True synchronous demodulation with active carrierregeneration (very linear demodulation, goodintermodulation figures, reduced harmonics,excelle...

product image

TDA9809M Picture
See larger image
SeekIC No. : 004516953 Detail

TDA9809M: Features: 5V supply voltage Applicable at Intermediate Frequencies (IFs) of 38.9 and 45.75MHzGain controlled wideband Video IF (VIF) amplifier (AC-coupled)True synchronous demodulation with active c...

TDA9809M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9809M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V supply voltage
Applicable at Intermediate Frequencies (IFs) of 38.9 and 45.75MHz
Gain controlled wideband Video IF (VIF) amplifier (AC-coupled)
True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics,
excellentpulse response)
Robustness for over-modulation better than 105% due
to PLL bandwidth control for negative modulation standards
VIF AGC (Automatic Gain Control) detector for gain
control, operating as peak sync detector for negative modulation standards
Tuner AGC with adjustable TakeOver Point (TOP)
AFC (Automatic Frequency Control) detector without extra reference circuit
AC-coupled limiting amplifier for sound intercarrier signal
Alignment-free FM PLL (Phase-Locked Loop)
demodulator with high linearity; integrated de-emphasis resistor
Integrated level detector
Alignment-free FMradio AFC detector with external resonator
RIF (Radio IF) amplifier for10.7MHz
Stabilizer circuit for ripple rejection and to achieve
constant output signals
ESD (Electrostatic Discharge) protection for all pins.

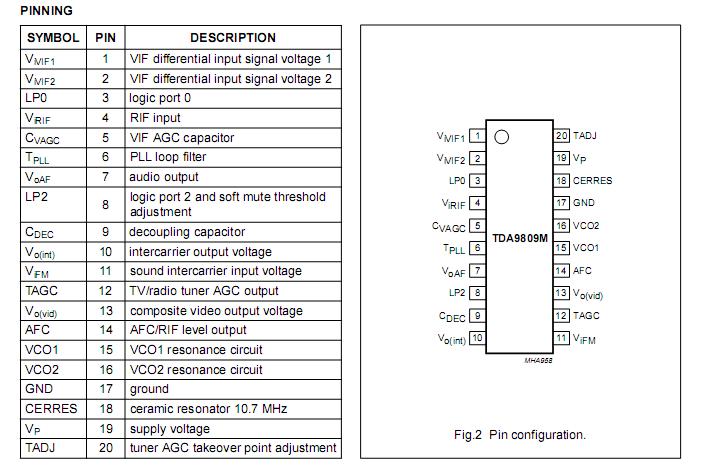

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX UNIT
VP supply voltage (pin 6) 0 10 V
Vn voltage on all pins, ground excluded 0 VP V
IO output current
at pins 15, 18, 13, 20, 7 and 26
at pins 2 and 31		 -
-		 2.5
1.5		 mA
mA
Ptot total power dissipation - 850 mW
Tstg storage temperature -25 +150 °C
Tamb operating ambient temperature -20 +70 °C
VESD electrostatic handling for all pins (note 1) -300 +300 V



Description

   The TDA9809M is an integrated circuit for single standard vision IF signal processing, FM demodulation and FM radio demodulation in multimedia sets.
