TDA9808

Features: 5V supply voltage (9V supply voltage for TDA9808(DIP20) only)Applicable for IFs (Intermediate Frequencies) of38.9MHz, 45.75MHz and 58.75MHzGain controlled wide band Video IF (VIF)-amplifier (AC-coupled)True synchronous demodulation with active carrierregeneration (very linear demodulatio...

product image

TDA9808 Picture
See larger image
SeekIC No. : 004516952 Detail

TDA9808: Features: 5V supply voltage (9V supply voltage for TDA9808(DIP20) only)Applicable for IFs (Intermediate Frequencies) of38.9MHz, 45.75MHz and 58.75MHzGain controlled wide band Video IF (VIF)-amplifie...

TDA9808 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9808
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V supply voltage (9V supply voltage for TDA9808(DIP20) only)
Applicable for IFs (Intermediate Frequencies) of
38.9MHz, 45.75MHz and 58.75MHz
Gain controlled wide band Video IF (VIF)-amplifier (AC-coupled)
True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics, excellent pulse response)
Robustness for over-modulation better than 105% due
to Phase Locked Loop (PLL)-bandwidth control at
negative modulated standards
VIF Automatic Gain Control (AGC) detector for gain
control, operating as peak sync detector
Tuner AGC with adjustable TakeOver Point (TOP)
Automatic Frequency Control (AFC) detector without extra reference circuit
AC-coupled limiter amplifier for sound intercarrier signal
Alignment-free FM-PLL demodulator with high linearity
Sound IF (SIF) input for single reference Quasi Split
Sound (QSS) mode (PLLcontrolled); SIF AGC detector
for gain controlled SIF amplifier; single reference QSS mixer for high performance
Electrostatic Discharge (ESD) protection for all pins.

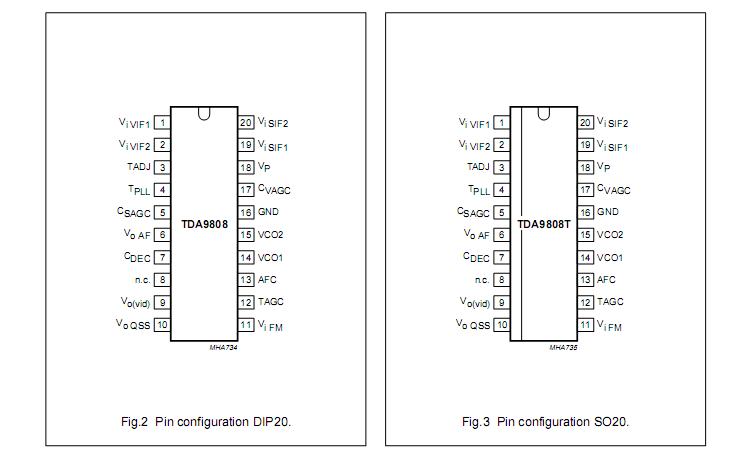

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX UNIT
VP supply voltage (pin 6) 0 10 V
Vn voltage on all pins, ground excluded 0 VP V
IO output current
at pins 15, 18, 13, 20, 7 and 26
at pins 2 and 31		 -
-		 2.5
1.5		 mA
mA
Ptot total power dissipation - 850 mW
Tstg storage temperature -25 +150 °C
Tamb operating ambient temperature -20 +70 °C
VESD electrostatic handling for all pins (note 1) -300 +300 V



Description

    The TDA9808 is an integrated circuit for single standard (negative modulated) vision IF signal processing and FM
demodulation, with single reference QSS-IF in TV and VTR sets.
