TDA9802

Features: ·Suitable for negative and positive vision modulation· Gain controlled 3-stage IF amplifier; suitable for VIF frequencies up to 60 MHz· True synchronous demodulation with active carrierregeneration (ultra-linear demodulation, good intermodulation figures, reduced harmonics andexcellent p...

product image

TDA9802 Picture
See larger image
SeekIC No. : 004516950 Detail

TDA9802: Features: ·Suitable for negative and positive vision modulation· Gain controlled 3-stage IF amplifier; suitable for VIF frequencies up to 60 MHz· True synchronous demodulation with active carrierreg...

TDA9802 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9802
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Suitable for negative and positive vision modulation
· Gain controlled 3-stage IF amplifier; suitable for VIF
    frequencies up to 60 MHz
· True synchronous demodulation with active carrier
    regeneration (ultra-linear demodulation, good
    intermodulation figures, reduced harmonics and
    excellent pulse response)
· Peak sync AGC for negative modulation, e.g. B/G standard
· Peak white AGC for positive modulation, e.g. L standard
· Video amplifier to match sound trap and sound filter (TOP)
· AFC detector without extra reference circuit
· Alignment-free FM-PLL detector with high linearity
· Stabilizer circuit for ripple rejection and to achieve
    constant output signals
· 5 to 8 V positive supply voltage range, low power
    consumption (300 mW at +5 V supply voltage)



Pinout

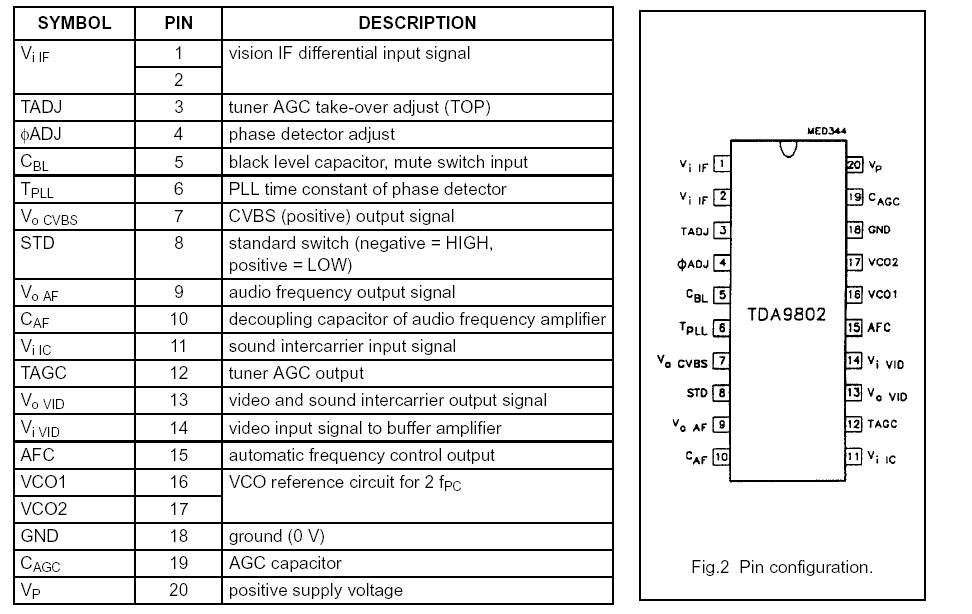

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage (pin 20) for a maximum chip temperature (note 1)
SOT146 at + 120 °C 0 8.8 V
SO163A at + 100 °C		 0
0		 5.5 V
Vi voltage on pins 1, 2, 7, 8, 11, 13, 14, 15 and 19
 0 VP V
ts(max) short-circuit time - 10 s
V19 tuner AGC output voltage - 13.2 V
Tstg storage temperature range -25 +150 °C
Vesd electrostatic handling for all pins (note 2) - ±300 v



Description

The TDA9802 is a monolithic integrated circuit for vision and sound IF signal processing in multistandard TV and VTR sets.
