Product Details

Description

Features:

Automatic adjustment by control loops
Integrated filters
Simple SVHS playback
Colour sequence correction for long-play still mode
Automatic gain control for FM.

Pinout

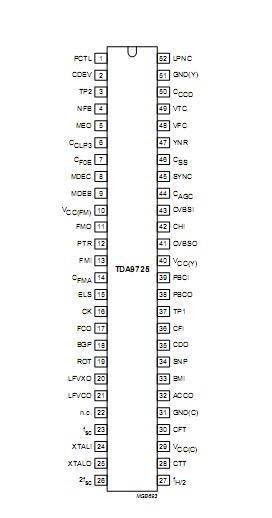

Connection Diagram

Specifications

SYMBO	PARAMETER	CONDITIONS	MIN.	TYP.	MAX.	UNIT
V_CC	supply voltage		0	-	6.0	V
V_I	input voltage at pin22		0	-	1.6	V
V_n	input voltage on all other pins		0	-	V_CC	V
I_I	input current at pin22		-	-	10	mA
P_tot	total power dissipation		-	-	1250	mW
T_Stg	storage temperature		-25	-	+150	°C
T_amb	operating ambient temperature		-20	-	+70	°C
V_es	electrostatic handling for all pins	note1	-300	-	+300	V

Description

The TDA9725 is an integrated circuit for chrominance and luminance processing (record and playback) in VHS tape
recorders for PAL, SECAM/ME and NTSC systems (4.43MHz playback only) with internal filter and without adjustments.
