TDA9614H

Features: All functions controlled by I2C-bus No adjustments needed by use of auto-calibration circ Integrated Bandpass Filters (BPFs) Low-noise Phase-Locked Loop (PLL) FM (de)modulaLow-distortion sample-and-hold switching noise suppressorIntegrated HF Low-Pass Filter (LPF) and summatorIntegrated ...

product image

TDA9614H Picture
See larger image
SeekIC No. : 004516945 Detail

TDA9614H: Features: All functions controlled by I2C-bus No adjustments needed by use of auto-calibration circ Integrated Bandpass Filters (BPFs) Low-noise Phase-Locked Loop (PLL) FM (de)modulaLow-distortion s...

TDA9614H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9614H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

All functions controlled by I2C-bus
No adjustments needed by use of auto-calibration circ
Integrated Bandpass Filters (BPFs)
Low-noise Phase-Locked Loop (PLL) FM (de)modula
Low-distortion sample-and-hold switching noise suppressor
Integrated HF Low-Pass Filter (LPF) and summator
Integrated audio LPF
5stereo inputs (left and right channel):
  TUNL and TU
  CINL and CIN
  EXT1L and EXT1
  EXT2L and EXT2
  EXT3L and EXT3
Additional mono input: Second Audio Program (SAP)
Independent Input/Output (I/O) selections and 2nd lin
output Linear audio
DCoutput for VUmeter drive
Direct headphone drive
RF converter output with overload Automatic Gain Control (AGC)
Integrated standby mode for low current consumption
E-E performance (record+playback):
  Total Harmonic Distortion (THD):0.05-8dBV,1kHz)
  linearity error: 0.1dB -88dBV, 1kHz)
  noise -93dBV (20Hzto20kHz).


Pinout

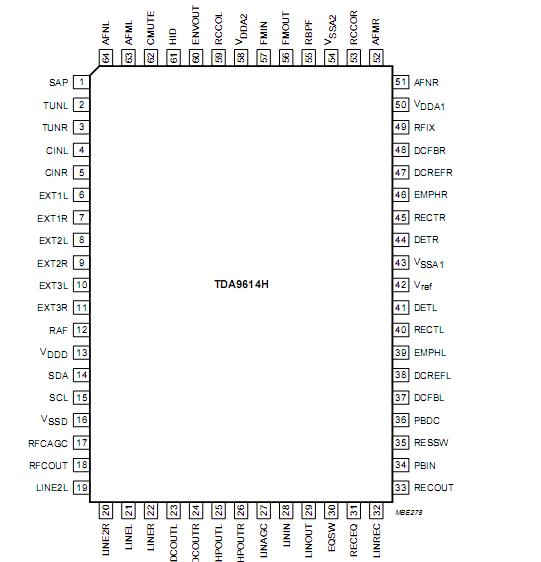

Connection Diagram


Specifications

SYMBOL PARAMETERv CONDITIONS MIN. MAX UNIT
VDDA1 analog supply voltage1   0 13.2 V
VDDA2 analog supply voltage2   0 5.5 V
VDDD digital supply voltage   0 5.5 V
Vn voltage on pins:
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 28, 41, 44, 51, 52,
63 and64
56, 60 and62
12 and 32		   0
0
0		 7.7
VDDA2
VDDD		 V
V
V
Tstg storage temperature   -65 +150 °C
Tamb operating ambient temperature   0 +70 °C
Ves electrostatic handling MM; note1 -150 +150 V
HBM; note2 -1500 +1500 V



Description

    The TDA9614H is an audio processing IC for VHS hi-fi and linear audio, digitally controlled via the I2C-bus. The FM (de)modulator and peak noise reduction functions are highly integrated, resulting in few external components and no external adjustments.

    In addition special functions for audio mixing, dubbing and descrambling have been implemented.
