Description



Features:

Integrated High Frequency (HF) low-pass filter (LPF) and summator
Low-noise Phase-Locked Loop (PLL) FM(de)modula
Low-distortion sample-and-hold switching noise suppressor
Integrated audio low-pass filter
4stereo input selectors (left [L] and right [R] channel
   EXT1L and EXT1
   EXT2L and EXT2
   CINL and CIN
   TUNL and TUN
Additional mono inputs for linear audio: EXN1 and EX
DC output for VUmeter drive
Direct headphone drive
Linear input/linear output
Modulator output with overload Automatic Gain Control (AGC)
RAF (Record Audio FM) for head amplifier control
Power-down mode facility
I2C-bus control of
  line input volum
  headphone output volum
  input/output selecto
  PAL/NTSC mod
E-E performance (record+playback):
  Total Harmonic Distortion (THD):0.05
  8dBV,1kHz)
  linearity error: 0.1dB ?88dBV)
  noise-93dBV (20Hzto20kHz).


Pinout

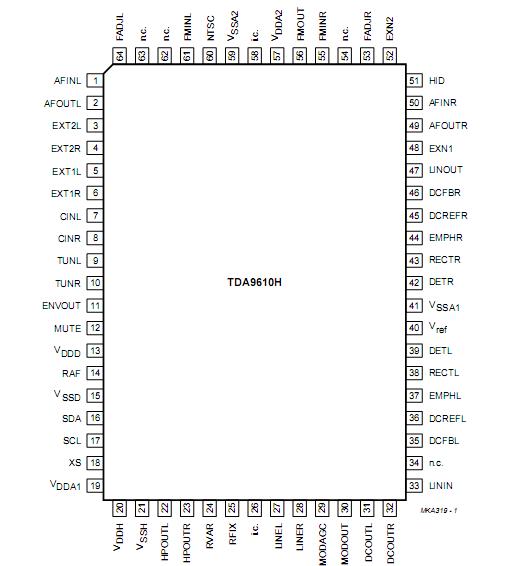

Connection Diagram


Specifications

SYMBOL PARAMETERv MIN. MAX UNIT
VDDA1 analog supply voltage1 0 13.2 V
VDDA2 analog supply voltage2 0 5.5 V
VDDD digital supply voltage 0 5.5 V
Vn voltage on pins:
1, 3, 4, 5, 6, 7, 8, 9, 10, 39, 42, 48, 50and52
11, 12, 56and60
14and18		 0
0
0		 7.7
VDDA2
VDDD		 V
V
V
Tstg storage temperature -65 +150 °C
Tamb operating ambient temperature 0 +70 °C



Description

    The TDA9610H is a dual audio FM processing I2C for VHShi-fi audio, digitally controlled via the I2C-bus. TheFM(de)modulator and peak noise reduction functions are highly integrated, resulting in few external components and adjustments.

   In addition special functions for audio editing, mixing and dubbing have been implemented.
