Product Details

Description



Features:

All functions controlled via the serial 2-wire I2 C-bus
Integrated standby modes for low power consumption
Audio FM head amplifier:
 Programmable recording curren
 Programmable playback amplificatio
 Fast record-mute mode control input
Hi-fi signal processing:
  Adjustment fre
  High performanc
  Low distortion switching noise suppresso
  NTSC and PAL (SECAM) system
Linear audio input:
  Programmable (playback) level
5stereo inputs and additional mono Second Audio Program (SAP) input
2stereo outputs (line and decoder) with independent
output select function
RF converter output with overload-protection AGC
Integrated output power muting
Audio level meter output
Extensive input and output select function
Full support of video recorder feature modes.


Pinout

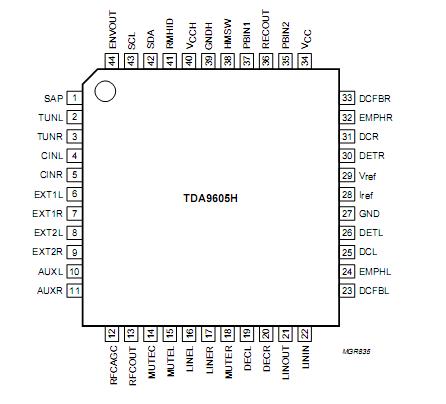

Connection Diagram


Specifications

SYMBOL PARAMETERv CONDITIONS MIN. MAX UNIT
VCC supply voltage   0 13.2 V
VCCH head ampli?er supply voltage   0 5.5 V
Tstg storage temperature   -65 150 °C
Tamb operating ambient temperature   0 70 °C
Ves electrostatic handling voltage machine model -300 +300 V
human body model -3000 +3000 V
Ilu(prot latch-up protection current on
pinHSMW
pinSDA
all other pins		 Tj =100 °C -70
-60
-100		 +100
+100
+100		 mA
mA
mA



Description

    The TDA9605H is a single-chip device in a small package that contains all the required functions, including the head amplifier, to realize the audio FM hi-fi stereo system in a VHS video recorder (see Fig.1). The device is adjustment free by use of an integrated auto-calibration system. Extensive signal select functions are offered to support pay-TV decoding and video recorder feature modes.

   The high performance and functionality of the TDA9605H omprises world-wide system and application requirements for NTSC, PAL, SECAM and multi-standard video recorders from basic up to high-end models.
