TDA9556

Features: Triple-channel video amplifierPinning for easy PCB layout Supports DC coupling (optimum cost saving) and AC coupling applications. Built-in Voltage Gain: 19.3 (Typ.)Rise and Fall Times: 7.5ns (Typ.) Bandwidth: 50MHz (Typ.) Very low stand-by power consumption 80V Output dynamic range Supp...

product image

TDA9556 Picture
See larger image
SeekIC No. : 004516942 Detail

TDA9556: Features: Triple-channel video amplifierPinning for easy PCB layout Supports DC coupling (optimum cost saving) and AC coupling applications. Built-in Voltage Gain: 19.3 (Typ.)Rise and Fall Times: 7....

TDA9556 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9556
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Triple-channel video amplifier
Pinning for easy PCB layout
Supports DC coupling (optimum cost saving) and AC coupling applications.
Built-in Voltage Gain: 19.3 (Typ.)
Rise and Fall Times: 7.5ns (Typ.)
Bandwidth: 50MHz (Typ.)
Very low stand-by power consumption
80V Output dynamic range
Supply voltage: 110V
Perfectly matched with the TDA9210 preamplifier

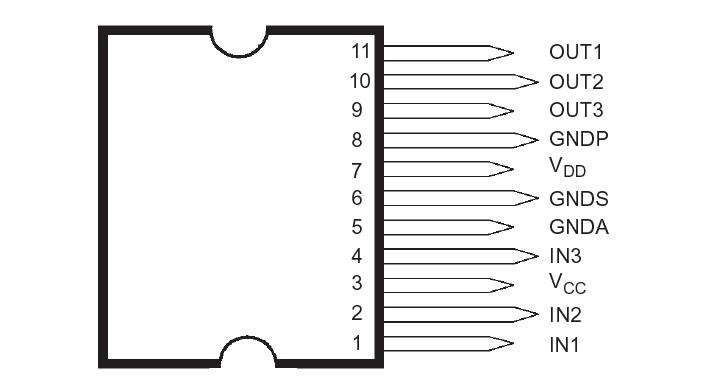

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD High supply voltage 120 V
VCC Low supply voltage 17 V
VESD ESD susceptibility
Human Body Model (100pF discharged through 1.5KW)
EIAJ norm (200pF discharged through 0W)		 2
300		 kV
V
IOD Output source current (pulsed < 50s) 80 mA
IOG Output sink current (pulsed < 50s) 80 mA
VIN Max Maximum Input Voltage 15 V
VIN Min Minimum Input Voltage - 0.5 V
TJ Junction Temperature 150 °C
TSTG Storage Temperature -20 + 150 °C



Description

The TDA9556 is a triple-channel video amplifier designed in BCD technology (Bipolar/CMOS/ DMOS) able to drive the 3 cathodes of a CRT monitor.

Perfectly matched with the ST Preamplifier TDA9210, it provides a high performance, and very cost effective DC coupling system.
