TDA9530

Features: TRIPLE CHANNEL VIDEO AMPLIFIER SUPPORTs DC OR AC COUPLING APPLICATIONS BUILT IN VOLTAGE GAIN: 20 RISE AND FALL TIMES: 9.5ns TYPICAL BANDWIDTH: 37MHz TYPICAL SUPPLY VOLTAGE: 110V ADDITIONAL CUT-OFF INPUT CONTROLPinoutSpecifications SYMBOL PARAMETER Value Unit VDD High Suppl...

product image

TDA9530 Picture
See larger image
SeekIC No. : 004516938 Detail

TDA9530: Features: TRIPLE CHANNEL VIDEO AMPLIFIER SUPPORTs DC OR AC COUPLING APPLICATIONS BUILT IN VOLTAGE GAIN: 20 RISE AND FALL TIMES: 9.5ns TYPICAL BANDWIDTH: 37MHz TYPICAL SUPPLY VOLTAGE: 110V ADDITIONA...

TDA9530 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA9530
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

TRIPLE CHANNEL VIDEO AMPLIFIER
  SUPPORTs DC OR AC COUPLING APPLICATIONS
  BUILT IN VOLTAGE GAIN: 20
  RISE AND FALL TIMES: 9.5ns TYPICAL
  BANDWIDTH: 37MHz TYPICAL
  SUPPLY VOLTAGE: 110V
  ADDITIONAL CUT-OFF INPUT CONTROL

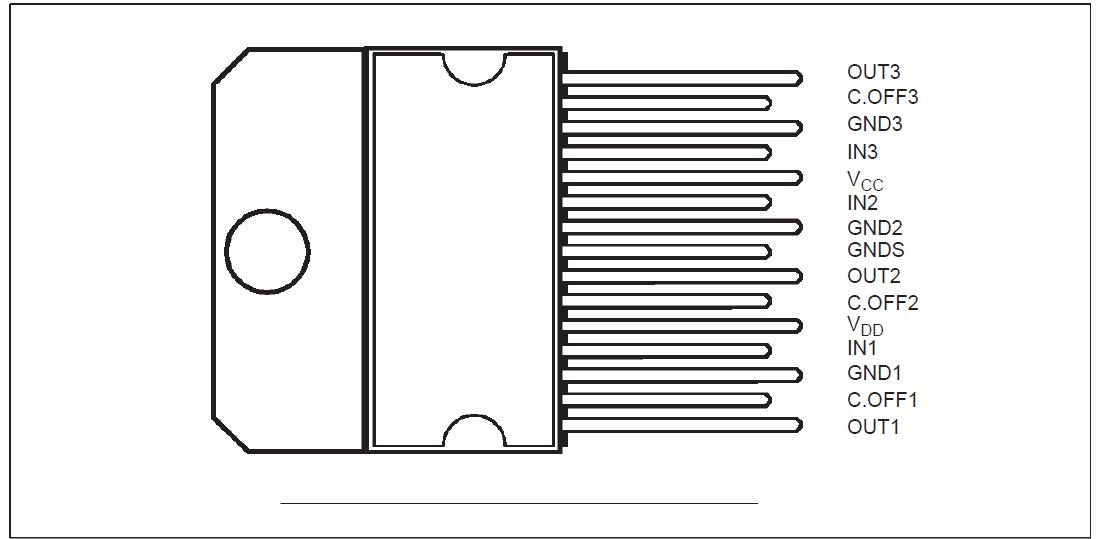

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER Value
Unit
VDD High Supply Voltage 120
V
VCC Low Supply Voltage 17
V
VESD ESD Susceptibility
Human Body Model, 100pF. Discharge through 1.5KW
EIAJ Norm, 200pF. Discharge through 0W		 2
250
kV
V
IOD Output Source Current (pulsed < 50s) 80
mA
IOG Output Sink Current (pulsed < 50s) 80
mA
VI Max Maximum Input Voltage 15
V
VI Min Maximum Input Voltage - 0.5
V
VIC OFF Max Maximum C. off Input Voltage VCC + 0.5
V
VIC OFF Min Maximum C. off Input Voltage - 0.5
V
TJ Junction Temperature 150 °C
TSTG Storage Temperature -20 + 150 °C



Description

The TDA9530 is a triple video amplifier with high voltage Bipolar/CMOS/DMOS technology (BCD). It can drive the 3 cathodes of a monitor CRT in DC or AC coupling mode. A DCcoupling application is obtained by connecting a triple DC controlled circuit either on the input pin or on the cut-off pin.
