Features:

BANDWIDTH : 40MHzTYPICAL
RISE AND FALL TIME : 9ns TYPICAL
SUPPLYVOLTAGE : 110V
POWER DISSIPATION: 3.0W
ESD PROTECTED

Pinout

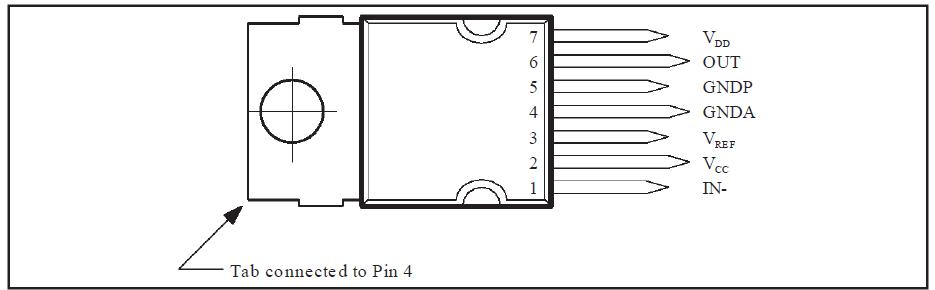

Connection Diagram

Specifications

symbol	partameter	Value	unit
V_DD	SupplyHighVoltage(Pin7)	120	V
V_CC	SupplyLowVoltage(Pin2)	20	V
V_ESD	ESDSusceptibility HumanBodyModel,100pFDischargethrough1.5k EIAJNorm,200pFDischargethrough0	2 300	kv V
I_OD I_OG	OutputCurrenttoV (Pin6) DD OutputCurrenttoGround(Pin6)(seeNote1)	80	MA
I_j	InputCurrent(Pin1)	50	MA
T_j	JunctionTemperature	150	°C
T_oper	OperatingAmbientTemperature	0,+70	°C
T_stg	StorageTemperature	-20,+150	°C

Description

The TDA9511 is a video amplifier designed with a high voltage Bipolar/CMOS/DMOS technology (BCD). It drives in DC coupling mode one cathode of a monitor and is protected against flashovers. It is available in Heptawatt package.
