TDA933xH

Features:

Available in all ICs:
· Can be used in both single scan (50 or 60 Hz) and double scan (100 or 120 Hz) applications
· YUV input and linear RGB input with fast blanking
· Separate OSD/text input with fast blanking or blending
· Black stretching of non-standard luminance signals
· Switchable matrix for the colour difference signals
· RGB control circuit with Continuous Cathode Calibration (CCC), plus white point and black level offset adjustment
· Blue stretch circuit which offsets colours near white towards blue
· Internal clock generation for the deflection processing, which is synchronized by a 12 MHz ceramic
    resonator oscillator
· Horizontal synchronization with two control loops and alignment-free horizontal oscillator
· Slow start and slow stop of the horizontal drive pulses
· Low-power start-up option for the horizontal drive circuit
· Vertical count-down circuit
· Vertical driver optimized for DC-coupled vertical output stages
· Vertical and horizontal geometry processing
· Horizontal and vertical zoom possibility and vertical scroll function for application with 16 : 9 picture tubes
· Horizontal parallelogram and bow correction
· I²C-bus control of various functions
· Low dissipation.

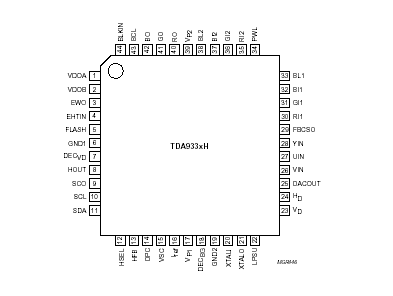

Pinout




Specifications

Symbol	PARAMETER	CONDITIONS	MIN.	MAX.	Unit
VP	supply voltage		-	9.0	V
Tstg	storage temperature		-25	+150
Tamb	ambient temperature		0	70
Tsol	soldering temperature	for 5 s	-	260
Tj	junction temperature		-	150

Description

The TDA933xH series are display processors for 'High-end' television receivers which contain the following functions:

` RGB control processor with Y, U and V inputs, a linear RGB input for SCART or VGA signals with fast blanking, a
    linear RGB input for OSD and text signals with a fast blanking or blending option and an RGB output stage
    with black current stabilization, which is realized with the CCC (2-point black current measurement) system.
` Programmable deflection processor with internal clock generation, which generates the drive signals for
    the horizontal, East-West (E-W) and vertical deflection. The TDA933xH has various features that are attractive for
    the application of 16 : 9 picture tubes.
` The circuit can be used in both single scan (50 or 60 Hz) and double scan (100 or 120 Hz) applications.

In addition to these functions, the TDA9331H and TDA9332H have a multi-sync function for the horizontal PLL, with a frequency range from 30 to 50 kHz (2fH mode) or 15 to 25 kHz (1fH mode), so that the TDA933xHs can also be used to display SVGA signals.

The supply voltage of the ICs is 8 V. TDA933xH are each contained in a 44-pin QFP package.
