Product Details

Description

Features:

.POWER AMPLIFIER
.FLYBACK GENERATOR
.THERMAL PROTECTION

Pinout

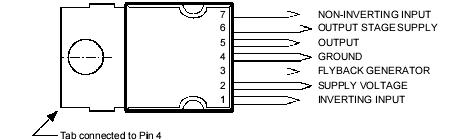

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage (pin2)	35	V
V5,V6	Flyback Peak Voltage	60	V
V3	Voltage at Pin3	+ Vs
V1 , V7	Amplifier InputVoltage	+ Vs 0.5	V
Io	Deflection Output Current	± 1.8	A
I3	Pin 3 DC Current at V5 <V2	100	mA
Ptot	Total Power Dissipation at T =90 °C	15	W
Tstg,Tj	Storage and JunctionTemperature	40, +150	°C

Description

The TDA9302H is a monolithic integrated circuitin HEPTAWATT^TMpackage. It is a high efficiency
power booster for direct driving of vertical windings of TV yokes. It is intended for use in Color and B &
W television as well as in monitors and displays.
